1. Furnace wall automatic type is suitable for glass fiber and other glass furnace
2. Probe hood enter furnace wall, the thickness of furnace wall less than 500mm
3. The probe cover is made of stainless steel with good corrosion resistance
4. Special dust proof design, the lens does not gather dust
5. Special water cooling, under the condition of poor water quality can normally use
6. The high temperature pin hole zoom lens Independent development and design, horizontal resolution is greater than 2.0 million pixels, under no cooling condition, it can with stand 350℃
7. Probe hood can enter and exit automatically
8. Using high-temperature air cylinder, with good reliability
9. When water cooling or power supply have unforeseen circumstances, probe hood can exit automatically
10. In the central control room or at site can control the equipment to enter and exit
11. By DCS can control the equipment to enter and exit
12. Using manual zoom high temperature pinhole lens can satisfy different furnace, different product requirements
13. Using electric zoom high temperature pinhole lens can remote control the size and the clarity of image

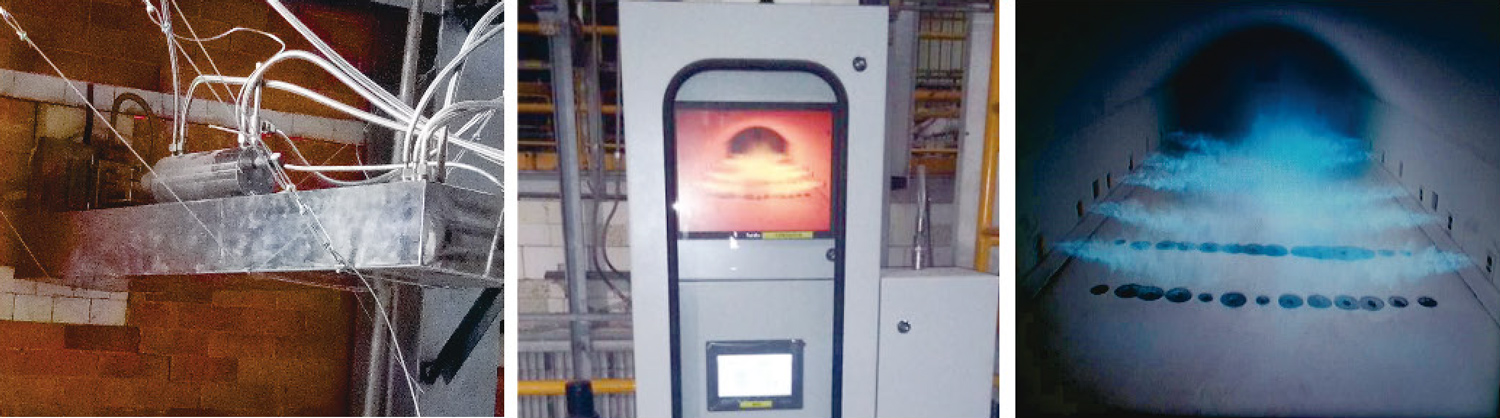

The Glass Fiber Kiln Industrial TV System is specifically engineered to monitor the harsh internal environment of glass fiber melting furnaces. Its core component, a robust kiln camera, is housed in a high-strength protective housing equipped with advanced water or air-cooling systems to withstand extremely high temperatures and corrosive atmospheres. This system provides clear, real-time video of the molten glass surface, flow patterns, and refractory conditions directly to the control room. The visual data enables operators to optimize melting efficiency, control bubble formation, detect blockages early, and ensure the stability of the glass drawing process, thereby improving product quality and operational safety.
Main function Probe will exit | 1. Hood temperature over 55℃ |
Technical parameters | 1. Lens definition: horizontal resolution is greater than 2.0 million pixels |
Compressed air | 1. Total intake pipe: G3/4" |
Cooling water | 1. Total intake pipe: G1/2" |
Working condition temperature | 1. Control box: -20°C～75°C |
Dimension | 1. Handle exit device: 1500*380*350mm |
Q1: What safety mechanisms protect this monitoring camera system during operation?
A: The system features an intelligent automatic protection mechanism. In the event of water cooling failure, power loss, or other unforeseen circumstances, the probe hood will automatically exit the furnace. It utilizes a reliable high-temperature air cylinder to ensure the equipment is withdrawn to safety immediately, preventing damage from the extreme furnace temperatures (up to 2000°C).
Q2: What are the optical capabilities of this monitoring camera system?
A: This system is equipped with an independently developed high-temperaturepinhole zoom lens with a horizontal resolution greater than 2.0 million pixels. It features variable focusing (F4-F20 continuously adjustable) and is incredibly durable, capable of withstanding temperatures up to 350°C even without active cooling. Operators can use either manual or electric zoom to remotely control the image size and clarity.
Q3: How is this monitoring camera system designed for the harsh glass fiber kiln environment?
A: The probe hood is constructed from stainless steel for excellent corrosion resistance and features a special dust-proof design to prevent dust accumulation on the lens, ensuring a clear view. It is designed to be inserted into furnace walls with a thickness of less than 500mm. Additionally, it utilizes a special water cooling design that functions normally even under conditions of poor water quality, ensuring long-term stability in industrial settings.
User manuals, video tutorials, and on-site training (upon request)
