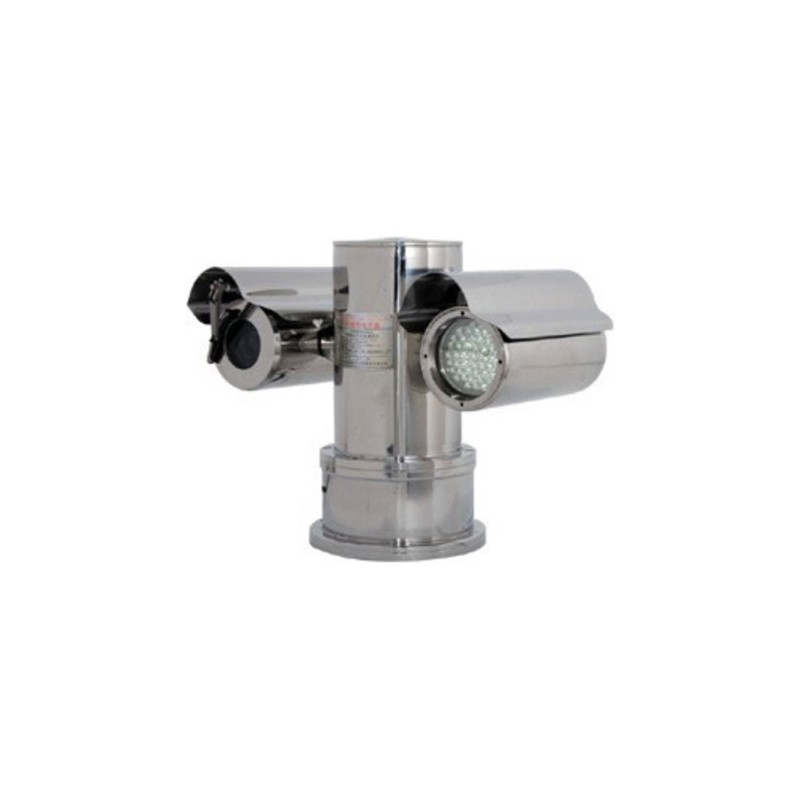

The LM-BS580Ex Radiation Resistant Camera is engineered for the most demanding environments. It delivers reliable visual monitoring with a cumulative radiation tolerance exceeding 2 MGy, ensuring long-term performance integrity in nuclear fuel handling and reactor inspection areas. Housed in a durable, IP68 fully sealed stainless steel enclosure, This Radiation Resistant Camera provides exceptional protection against water, dust, and corrosive elements for all-weather and underwater operation. Its highly integrated design and versatile optional illuminators guarantee clear, stable surveillance where standard cameras fail, making it the definitive choice for critical safety and inspection applications.
The LUMING radiation resistant camera is specifically engineered for high-radiation environments where standard surveillance equipment fails. Our radiation hardened CCTV systems utilize specialized shielding and radiation-tolerant optical components to ensure reliable monitoring in nuclear power plant reactors, fuel storage facilities, and medical accelerators.
Designed to withstand cumulative radiation doses without compromising image quality, this nuclear-grade radiation resistant camera features a robust integrated design that combines high-resolution imaging with exceptional durability. Whether for real-time process monitoring or safety inspections in radioactive zones, our technology provides the clarity and reliability you need.
Radiation Resistant Cameras Characteristics
Our Radiation Resistant CCTV Camera ensures stable operation in harsh conditions through a triple-protection system:
Superior Radiation Resistance
Cumulative radiation tolerance > 2 MGy (equivalent to 20,000 kGy). The Radiation Resistant Camera is designed for high-radiation environments like nuclear fuel inspection and reactor monitoring, ensuring long-term imaging system stability.
Robust Integrated Construction
Housed in a heavy-duty stainless steel radiation camera enclosure, the LM-BS580Ex achieves an IP68 radiation camera rating. This makes it impervious to dust, waterproof for underwater operations (such as spent fuel pool monitoring), and resistant to the corrosive chemicals often found in industrial environments. Its robust build ensures all-weather, all-terrain functionality, from outdoor perimeters to underwater inspections.
Panoramic Intelligent Monitoring
More than just a fixed point of view, this nuclear surveillance camera offers complete situational awareness. It features:
360° Continuous Pan & ±90° Tilt: Zero blind spots for comprehensive area coverage.
128 Preset Positions: Automated monitoring of critical points.
Versatile Illumination Options: Compatible with optional infrared (IR) LED, array LED, or laser illuminators for crystal-clear imaging in complete darkness.
Highly Integrated Design
This Radiation Resistant Camera features a highly integrated design combining the housing, pan/tilt, decoder, and camera core, significantly simplifying installation and reducing maintenance costs.
Product introduce | - Double certification, suit for various environment |
Material | Enclosure material: stainless steel |
Installation requirements | Vertical installation |
Electrical Specifications | Shell, head, decoder, camera highly integrated |
Infrared Components | A variety of control protocols, corresponding to a variety of control systems -- depending on the site, you can choose infrared LED illuminator, array LED illuminator or laser illuminator with 360 degree continuous rotation 360 degree horizontal rotation +90 degree - 90 degree vertical rotation |
Protection Grade | Protection grade IP68, strong radiation resistance (up to 2MGy) |
Presetting bit | 128 preset positions |
Operating environment | Indoor and outdoor installation, all-weather use, underwater supervision, nuclear fuel detection, reactor detection |
Installation | Bracket mounting or base mounting |
The LM-BS580Ex radiation resistant camera is deployed in environments where failure is not an option. Its primary applications include:
Nuclear Power Plants: Reactor inspection, fuel handling areas, and containment vessel monitoring.
Spent Fuel Pools: Underwater monitoring of stored nuclear fuel.
Medical & Research Facilities: Surveillance in medical accelerator bunkers and particle accelerator labs.
Nuclear Waste Management: Inspection and monitoring of processing and storage facilities.
Industrial Radiography: Remote viewing in high-radiation non-destructive testing (NDT) areas.
Ready to discuss how the LM-BS580Ex radiation tolerant camera can enhance safety and monitoring at your facility? Contact our team today for a consultation or a customized quote. We are your trusted partners in radiation hardened CCTV technology.
Q: What makes a camera "radiation resistant"?
A: A genuine radiation hardened camera like the LM-BS580Ex uses specially selected electronic components and "non-browning" glass that can withstand ionizing gamma and X-ray radiation without degrading. Standard electronics would quickly fail, and ordinary lenses would darken.
Q: Can this Radiation Resistant Camera be used in nuclear underwater inspections?
A: Yes. With its IP68-rated stainless steel radiation camera housing, it is fully sealed against water ingress, making it ideal for underwater tasks like monitoring spent nuclear fuel pools.
Q: Do you offer customized shielding for higher radiation levels?
A: As a Radiation Resistant Camera supplier and manufacturer, we provide customizable shielding options based on the specific Rad-level and dose rate of your project site.
User manuals, video tutorials, and on-site training (upon request)
