High temperature industrial TV (Ball clip type)

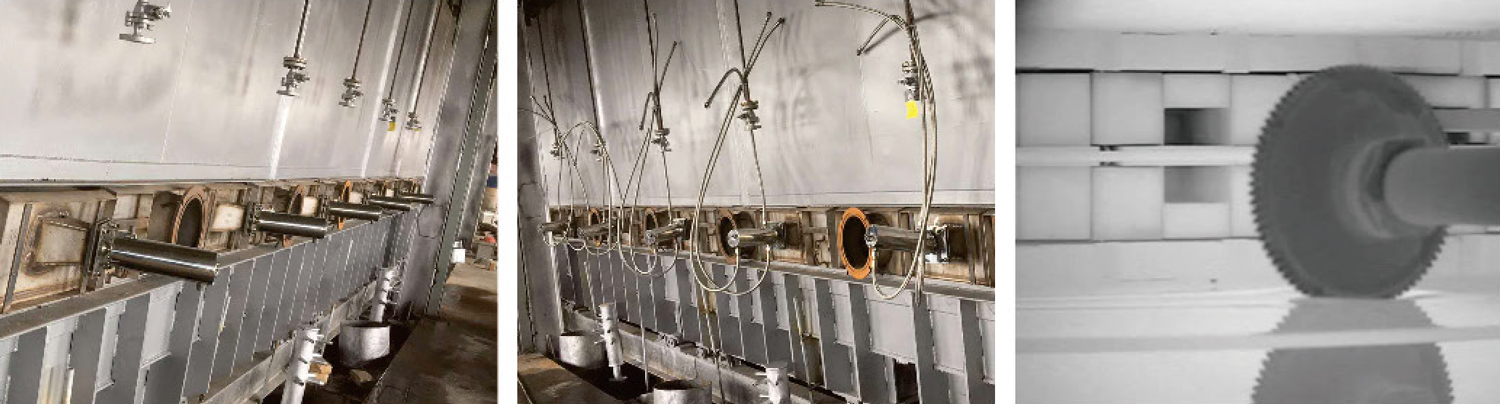

Ball Clip Type High Temperature Industrial TV System for Furnace Monitoring

A specialized monitoring solution engineered for extreme furnace environments up to 1500°C, particularly suited for float glass production lines. The LM-WK350 features a unique ball-clip mounting system that installs directly into furnace walls, effectively blocking gas leakage while simplifying installation. Equipped with a self-developed high-temperature pinhole zoom lens (>2.0 million pixels resolution), it delivers clear imaging even at 150°C without active cooling. The system includes special water cooling compatible with poor water quality and a dustproof design for reliable long-term operation in industrial furnaces.

Model:LM-WK350

WhatsApp Now

Ball Clip Type High Temperature Industrial TV System for Furnace Monitoring

Product Features

The Ball Clip Type High Temperature Industrial TV System (Model: LM-WK350) is a robust monitoring solution designed specifically for float glass lines and high-temperature furnaces. Constructed from corrosion-resistant stainless steel, it features a unique ball-clip mount that fixes directly into the furnace wall to effectively block gas leakage.

The system utilizes a self-developed high-temperature pinhole zoom lens with over 2.0 million pixels resolution, capable of withstanding 150°C without active cooling. Equipped with special water cooling (compatible with poor water quality) and a dustproof design, it ensures clear, stable monitoring in extreme environments up to 1500°C.

Ball Clip Type High Temperature Industrial TV System Parameter

Compressed Air	1. Total intake pipe: G1/2" 2. Inlet pressure: ≥0.1 MPa 3. Inlet temperature: ≤35°C 4. Minimum flow: 0.1 m³/min
Cooling Water	1. Total intake pipe: G1/2" 2. Inlet pressure: 0.2-0.5 MPa 3. Minimum flow: ≥5 L/min 4. Inlet temperature: ≤35°C
Working Temperature	1. Environmental temperature: -20°C ~ 75°C 2. Furnace temperature: ≤1500°C
Protection Rating	IP65

FAQs

Q1: How does the installation of this High Temperature Industrial TV System differ from traditional models?

A: This system features a unique "Ball Clip" design that allows the equipment to be fixed directly into the furnace wall. This direct mounting not only simplifies the setup but also effectively blocks gas leakage, making it more environmentally friendly and energy-saving. Additionally, it is equipped with a stainless steel universal joint, allowing operators to adjust the image angle within 20 degrees for optimal viewing.

Q2: What optical performance can we expect from this High Temperature Industrial TV System?

A: The system is equipped with a self-developed high-temperature pinhole zoom lens that offers a horizontal resolution greater than 2.0 million pixels. It features variable focusing (continuously adjustable from F4 to F20) and an adjustable angle of field (18 to 35 degrees). Remarkably, the lens can withstand temperatures up to 150°C even without active cooling, ensuring clear imaging in intense heat.

Q3: How does this High Temperature Industrial TV System handle harsh environments like dust and poor water quality?

A: The system is designed for reliability in tough conditions. It features a special dustproof design that prevents the lens from gathering dust, ensuring clear visibility. Furthermore, it utilizes a special water cooling system that functions normally even under conditions of poor water quality. With an IP65 protective level and the ability to withstand furnace temperatures up to 1500°C, it provides stable, long-term monitoring for float glass industry applications.
