1. Special protective design ensures normal operation in harsh environment with high ambient temperature and corrosive gas.

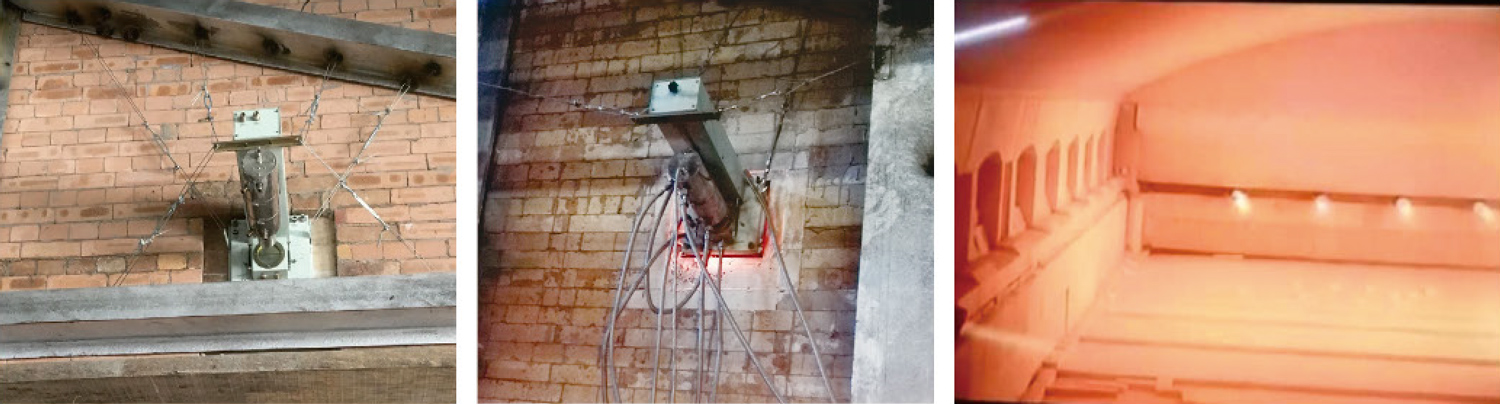

2. Furnace wall manual type is suitable for float glass line glass kiln and horseshoe glass kiln.
3. Probe hood enter furnace wall when angle of view less than 45°.
4. Probe hood use stainless steel materials, with good corrosion resistance.
5. Special dust proof design, the lens does not gather dust.
6. Special water cooling, under the condition of poor water quality can normally use.
7. The high temperature pinhole zoom lens is ourselves develop and product, horizontal resolution is greater than 2.0 million pixels, under no cooling condition, it can withstand 350 degree celsius.
8. Manually insert/exit the probe cover
9. Using high-temperature air cylinder, with good reliability.
10. When water cooling or power supply have unforeseen circumstances, probe hood can exit manually.
11. In the central control room or at site can control the equipment to enter and exit.
12. By DCS can control the equipment to enter and exit.
13. Using manual zoom high temperature pinhole lens can satisfy different furnace, different product requirements.
14. Using electric zoom high temperature pinhole lens can remote control the size and the clarity of image.
The High Temperature Industrial CCTV System for Float Glass provides critical visual monitoring throughout the high-temperature production process. At its core are robust, multi-cooled kiln camera units specifically engineered to withstand the extreme environments of the tin bath and annealing lehr. These cameras deliver high-resolution, real-time video directly to the control room. This allows operators to visually inspect the glass ribbon's quality, promptly identify surface defects, monitor its width and edge stability, and ensure the smooth flow of the entire production line, thereby guaranteeing stable, high-quality output.
Main function Probe will exit manually | 1. Temperature of the hood rises above 55℃. |
Technical parameters | 1. Lens definition: horizontal resolution is greater than 2.0 million pixels |
Compressed air | 1. Total intake pipe: G3/4" |
Cooling water | 1. Total intake pipe: G1/2" |
Working condition temperature | 1. Manual exit device: -20℃-100℃ |
Dimension | Automatic exit device: 760*300*320mm |
User manuals, video tutorials, and on-site training (upon request)
