1. Furnace automatic, it applies to all kinds of high temperature furnaces.
2. It applies to the furnace that the thickness of furnace wall is around 500mm.
3. Probe hood is made of stainless steel, with good corrosion resistance.
4. Special spiral air curtain, the lens does not gather dust.
5. Special air and water cooling, the device can be used in all kinds of bad conditions normally.
6. Sapphire heat resisting lens.
7. Probe hood enter and exit automatically.
8. Using heat resisting cylinder, with good reliability.
9. Probe hood will exit automatically if there is any accident on power or water/air cooling.
10. Central control room or project site can control the equipment to entry or exit.
11. PLC procedural control, DCS software control camera menu and aperture.
12. Use the 500 mm high temperature optical pinhole lens.
13. Use 27 x optical zoom (electronic zoom 3.6-78) integrated camera.

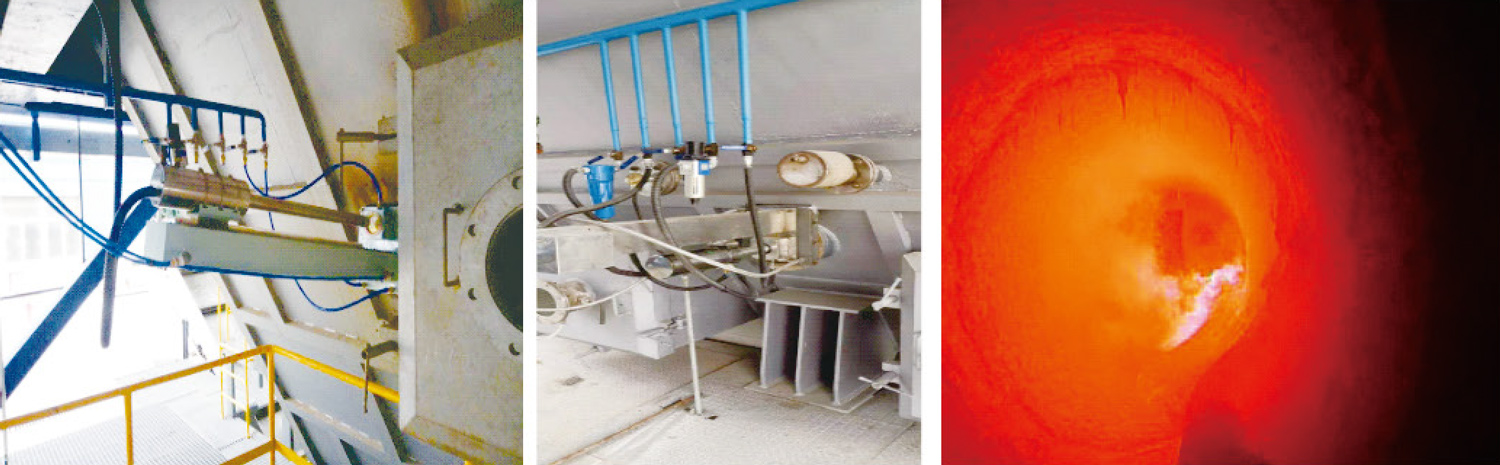

The Hazardous Waste High Temperature Industrial TV System provides critical visual oversight for extreme waste-to-energy environments. Equipped with advanced furnace cameras, this robust system is built to withstand the corrosive, high-temperature atmospheres inside incinerators. The Furnace Monitoring Camera delivers real-time video of the combustion chamber, allowing operators to verify burning efficiency, monitor material flow, and ensure complete waste destruction from the safety of the control room.
Main function Probe will exit | 1. Temperature of the hood rises above 50°C (specified levels). |
Technical parameters | 1. Resolution: 1920*1080 |
Compressed air | 1. Total intake pipe: G1" |
Cooling water | 1. Total intake pipe: G3/4" |
Working condition temperature | 1. Automatically exit device: -20°C～100°C |
Dimension | 1. Automatic exit device: 1400×400×305mm |
Q1: Can this High Temperature Industrial TV System withstand the extreme heat of waste incineration?
A: Yes. This High Temperature Industrial TV System is specifically engineered for hazardous waste and solid waste incinerators. It features a sapphire heat-resisting lens and a stainless steel probe hood that can withstand furnace temperatures up to 1700°C. The system is designed to operate continuously in these extreme thermal environments without degradation.
Q2: How does the system prevent the lens from getting dirty or damaged by dust?
A: The system employs a special spiral air curtain that creates a positive pressure barrier, preventing dust and ash from accumulating on the lens surface. Additionally, the probe hood is designed to automatically enter and exit the furnace. When not in use or during maintenance, it retracts to a safe zone, significantly extending the lifespan of the High Temperature Industrial TV System.
Q3: What safety mechanisms are in place if the cooling system fails?
A: Safety is paramount for this High Temperature Industrial TV System. It features an intelligent protection mechanism where the probe hood will automatically exit the furnace immediately if there is a failure in power, compressed air, or cooling water supply. This fail-safe design prevents the expensive camera equipment from being destroyed by the intense heat of the furnace.
User manuals, video tutorials, and on-site training (upon request)
