In cement, metallurgical, and chemical processing plants, the combination of extreme heat, combustible dust, and explosive gases creates one of the most challenging monitoring environments in industry. The LM-CS380 is a specialized explosion-proof kiln monitoring system engineered to deliver continuous, reliable thermal imaging where conventional cameras cannot operate.
This IP68 explosion-proof camera combines robust ingress protection with certified hazardous-area safety, making it the ideal choice for rotary kiln condition monitoring in environments where both water ingress and explosive atmospheres are a concern. As a complete rotary kiln temperature monitoring system, it provides real-time thermal data and visible video to protect both equipment and personnel.
The LM-CS380 functions as a comprehensive rotary kiln temperature monitoring system, continuously measuring temperature at multiple points across the kiln surface. When any measured temperature exceeds the preset alarm threshold, the integrated software triggers immediate alerts—visual and audible—while simultaneously recording the event for later analysis. This early warning capability allows operators to identify developing refractory issues before they escalate into costly unplanned shutdowns or equipment damage.

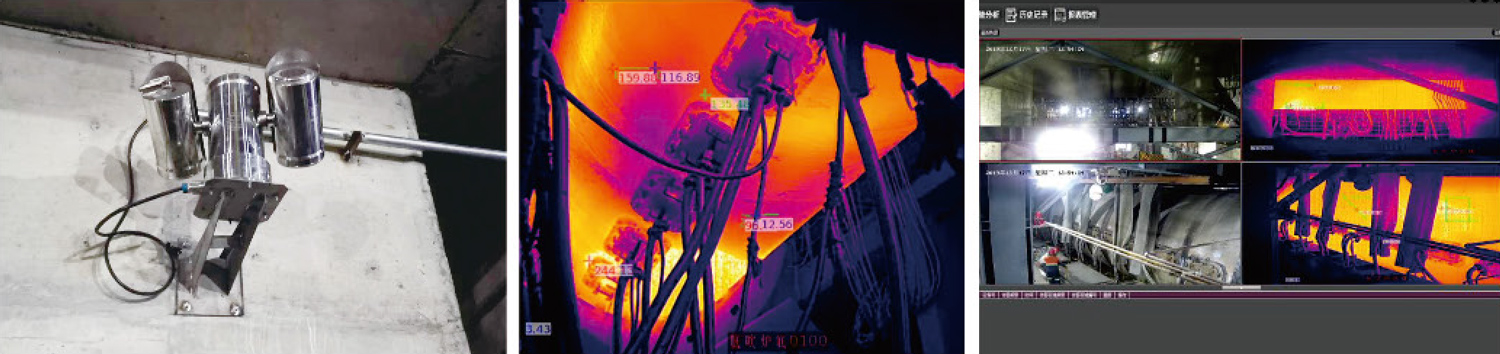

Operators gain complete situational awareness through the system’s dual-output capability. The monitor displays both the thermal image—showing precise temperature distributions—and standard visible video of the entire rotary kiln in real time. This combination enables rapid assessment of both thermal anomalies and physical conditions, allowing potential risks to be identified and addressed before kiln wall damage occurs, ensuring continuous production safety.
As a true explosion-proof kiln monitoring system, the LM-CS380 carries the Exd II BT5 / DIP A20 TA, T6 certification, making it suitable for standalone operation in environments with flammable gases and combustible dust. It can be paired with various explosion-proof electric pan-tilt units for full-coverage monitoring of hazardous zones. The housing is manufactured from high-grade stainless steel (304 or 316L) using advanced manufacturing processes backed by a certified quality management system, ensuring product quality and performance that lead the industry among comparable solutions.
Designed for the most demanding industrial environments, this IP68 explosion-proof camera offers:
Long-term stable operation across a wide ambient temperature range from -45°C to +60°C, ensuring reliability in extreme climates.
Special tempered glass window that maintains optical clarity and image quality even under thermal stress.
Dual outlet ports (G-3/4" thread) for flexible explosion-proof electrical connections using armored cable or flexible conduit.
Optional automatic heating function for reliable startup and operation in sub-zero conditions.
The thermal imager shield accommodates multiple configurations:
Installation with either fixed-focus or zoom lenses
Direct installation of an integrated thermal imager unit
Multiple mounting options including electric pan-tilt, semi-fixed head, fixed bracket, base, column, or tower installation
Easy installation and simplified maintenance reduce both initial setup time and long-term operational costs.
Product Features | 1. Two-factor certification, suitable for a variety of environments |
Electrical Specifications | 1. Input voltage 220VAC/24VAC/12VDC, operating current＜0.3A |
Certification | 1. Protective mark Exd Ⅱ BT5 / DIP A20 TA, T6 |
Mechanical Specifications | 1. Stainless steel 304 or 316L |
The LM-CS320 IP68 high temperature thermal camera is purpose-built for:
Rotary kiln monitoring in cement plants, lime kilns, and metallurgical facilities
Hazardous area surveillance where explosive gases (Zone 1, Zone 2) or combustible dust (Zone 21, Zone 22) are present
Outdoor and all-weather operation in extreme climates and washdown environments
High-temperature process monitoring where both explosion-proof and waterproof ratings are required
Q: What makes this an IP68 explosion-proof camera, and why is that important for kiln monitoring?
A: IP68 indicates the housing is completely dust-tight and protected against continuous immersion in water. The explosion-proof certification (Exd) means it can safely operate in atmospheres containing flammable gases or combustible dust—common in cement and metallurgical plants. Together, these ratings ensure reliable operation in the harshest kiln environments.
Q: How does this rotary kiln temperature monitoring system help prevent unplanned downtime?
A: By continuously measuring wall temperatures and providing configurable alerts, the system identifies hot spots that indicate refractory thinning or damage. Operators can address these issues during scheduled maintenance rather than facing catastrophic kiln failures and costly production interruptions.
Q: Can this high temperature camera be integrated with existing plant control systems?
A: Yes. The LM-CS380 can be configured with optional 4-20mA outputs and integrates seamlessly with plant DCS or PLC systems, allowing temperature alarms and monitoring data to be incorporated into broader plant automation and safety systems.
User manuals, video tutorials, and on-site training (upon request)
