Kiln Repair Portable Endoscope Camera System

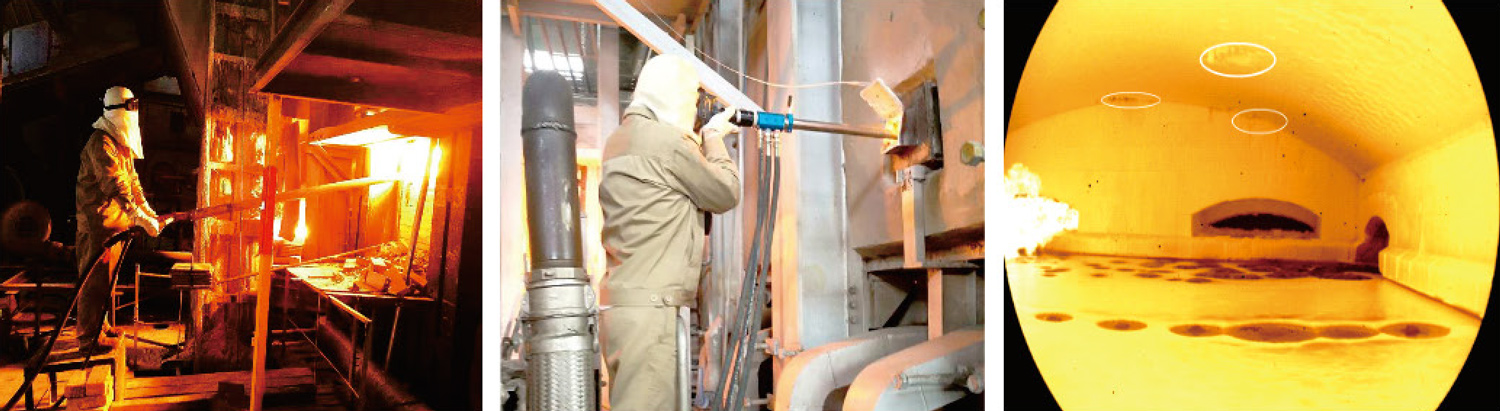

The Kiln Repair Portable Endoscope Camera System is used to monitor the condition of the dense wall in the glass furnace and can clearly observe the damage and corrosion of the glass furnace wall and the collapse of the window wall.

The Kiln Repair Portable Endoscope Camera System adopts the most advanced CCD camera in the world and is equipped with special industrial monitor to make the image more clear and stable.

The Kiln Repair Portable Endoscope Camera System adopts the special air-water double-cooling protective cover developed by our company to make the camera work safely and reliably for a long time in glass melting furnace with high temperature and serious dust pollution.

Model:LM-BX1500
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message


Kiln Repair Portable Endoscope Camera System

Product Parameter

Features

1. The 1/3 CCD's advanced video sensor provides clear images
2. The camera offers multiple Settings, including AGC, electronic shutter, and high temperature lens with adjustable aperture
3. The Kiln Repair Portable Endoscope Camera is light in weight and has good operability, which makes it suitable for mobile industrial applications
4. It is widely used in glass, glass fiber, glass container, steel, metallurgy, cement, power plant, waste incineration, petrochemical and other kiln testing
5. The diameter of the inner peeping head is very small, and it can rotate in large space to observe different directions
6. Multi-angle (direct vision, 60-degree, 90-degree multi-mode observation)
7. Full optical system, can withstand 2000℃ high temperature
8. Hand-held portable, easy to carry.
9. Using hd imaging system, a variety of filter optional, image clear, viewing distance, and adjustable optical focal length

Length

Standard 0.5 meters to 1.5meters (can customize according to the site)

Diameter

Standard 40 millimetre to 60 millimetre (can customize according to the site)

Lens

1. Customer option
2. It can withstand the ambient temperature below 2000℃

Inlet pressure

0.2Mpa/min~0.5Mpa/min

Air demand

1. Clean instrument gas
2. Air temperature: ≤30℃
3. Influent flow ≥400L/h

Water demand

1. Clean running water
2. Water temperature: ≤30℃

Observation angle

Direct vision /60°/90° (customized according to site conditions)

After-Sales Services

User manuals, video tutorials, and on-site training (upon request)


Warranty Coverage
2 years (parts & labor)

Extended Support Plans
Optional long-term maintenance contracts

Calibration & Maintenance
Regular checks to ensure accuracy

Emergency Repairs
Priority service for critical failures
