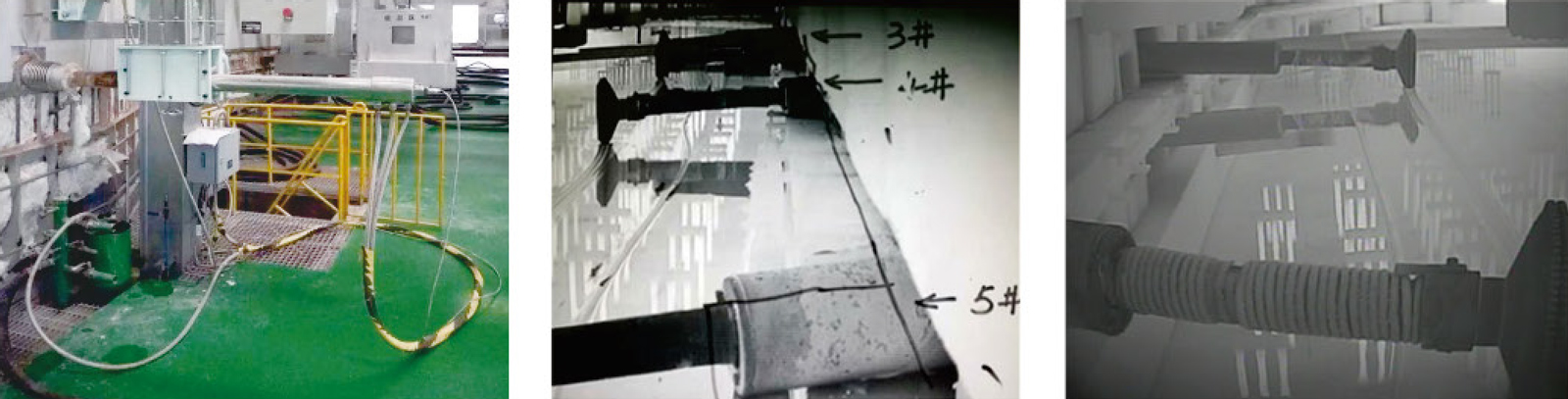

Tin Slot Endoscope High Temperature Industrial Television

1. The probe cover can be inserted into the tin tank for several meters

2. Through 90 turning high temperature zoom pinhole lens along the direction of the work piece movement observation, more intuitive and more comprehensive reaction furnace specific conditions

3. The probe cover is made of stainless steel with good temperature/corrosion resistance

4. Special dust proof design, the lens is not easy to accumulate dust

5. Special water cooling design for normal use under poor water quality conditions

6. The self-developed and produced high-temperature pinhole zoom lens has a horizontal resolution of more than 2 million pixels and can withstand temperature of 350 degrees without cooling

7. Manual zoom high temperature pinhole lens can be selected to meet the observation requirements of different kilns and different production processes

8. Electric zoom high temperature pinhole lens can be used to control the size range and sharpness of the image at a distance

9. Can be equipped with manual/electric advance and retreat control device

10. Manual/electric rotating device can be equipped to realize all tin tank observation

11. The equipment can be controlled by DCS

Model:LM-NZ4000

WhatsApp Now

Tin Slot Endoscope High Temperature Industrial Television

Product Features

The Tin Slot Endoscope High Temperature Industrial Television (Model: LM-NZ4000) is designed for deep tin tank monitoring. It features a stainless steel probe insertable several meters into the tank. Equipped with a high-temperature zoom pinhole lens (>2 million pixels), it withstands 350°C without cooling and furnace temps up to 1500°C. It includes robust nitrogen/water cooling (tolerant of poor water quality) and supports DCS or manual control for zoom and rotation.

Product Parameter

Technical Parametric	1. Sharpness of lens: the horizontal resolution is more than 2 million pixels 2. Lens variable focal length: Continuously adjustable f4-F20
Cooling the nitrogen	A. The total intake manifold: G3/4" B. Connecting pipe mouth: 3-G1/2" (Add globe valve) C. Entrance pressure: ≥0.1Mpa D. Inlet temperature: ≤35℃ E. Minimum flow: 0.45 m3 /min
Cooling water	1. The main intake pipe 3/4" 2. Connection nozzle: 2-G1/2 3. Inlet pressure: 0.2Mpa~0.5Mpa 4. Minimum flow: ≥30L/min 5. Inlet temperature: ≤35°C
Working condition temperature	1. Filed control cabinet: -20℃～75℃ 2. Furnace temperature: ≦1500°C
Dimension	a. Probe cover: 89mm in diameter and length 1M～3.8M b. Field control box: 300×400×200mm

FAQs

Q1: How deep can this High Temperature Industrial Television be inserted into the tin tank?

A: This High Temperature Industrial Television is designed with a probe cover that can be inserted several meters directly into the tin tank. This deep insertion capability allows for comprehensive monitoring of the specific conditions and workpiece movement deep inside the furnace, providing a much more intuitive view than external cameras.

Q2: What is the image quality and zoom capability of this High Temperature Industrial Television?

A: The system delivers exceptional clarity with a horizontal resolution of more than 2 million pixels. It features a 90-degree turning high-temperature zoom pinhole lens with a variable focal length (continuously adjustable f4-f20). This allows operators to control the size range and sharpness of the image from a distance, ensuring detailed observation of the production process.

Q3: How does this High Temperature Industrial Television handle extreme heat and cooling requirements?

A: The system is engineered for harsh thermal environments. The self-developed lens can withstand temperatures of up to 350°C without any active cooling. For higher temperatures, it utilizes a special water coolingdesign that is robust enough to function normally even under poor water quality conditions. It is suitable for furnace temperatures up to 1500°C.
