Proper industrial thermal monitoring in furnaces is a high-stakes task. Equipment failure is not an option. This practical guide cuts through technical jargon and focuses on key decisions. For high-temperature monitoring, how do you select furnace cameras that survive extreme heat and deliver accurate data? The answer lies in four core pillars: thermal endurance, image clarity, measurement accuracy, and system integration. Unlike standard thermal imagers, a furnace-rated camera must not only survive extreme heat but also deliver precise, radiometric temperature data. By the end of this guide, you will have a vendor-ready checklist of specifications and questions. This enables you to optimize uptime and operational insight.

Key Takeaways

• Match your camera to your furnace's environment. Document heat, dust, and vibration before you buy.

• Choose resolution and frame rate based on your monitoring goals. High detail for inspections, lower for general views.

• Prioritize thermal sensitivity (NETD) and calibration for accurate temperature data. This catches early problems.

• Select high-temperature lime kiln solutions and cooling systems that fit your plant's utilities. They ensure survival and a clear view.

• Plan for integration with your control system. This enables automated alerts and predictive maintenance.

Evaluating Furnace Cameras: Start with the Environment

Every specification decision for furnace cameras flows from one source: the operating environment inside your furnace. No resolution spec or software feature compensates for a camera that cannot survive its surroundings. Before comparing pixel counts or thermal sensitivity, you must document the conditions your camera will face. This assessment forms the foundation for every subsequent choice.

Defining Maximum Ambient Temperature and Heat Flux

Ambient temperature describes the air temperature surrounding the camera housing. Heat flux describes the radiant energy striking the camera surface. Both matter, but they stress equipment differently. A glass melting furnace presents some of the harshest conditions. Extreme high-temperature systems operate continuously in environments up to 3500°F (1926°C) in the hottest zones. Steel reheating furnaces generate intense radiant heat from glowing billets and burner flames. Meanwhile, cement kilns require specialized explosion-proof monitoring solutions to handle process zones exceeding 1400°C alongside combustible dust risks.

The distinction between ambient temperature and radiant heat affects cooling system selection. A camera may sit in relatively cool ambient air while absorbing intense radiation from a nearby flame. Conversely, a camera mounted close to furnace walls experiences high ambient temperatures with moderate radiant loading. Each scenario demands a different cooling strategy. For high-temperature monitoring applications, you must specify both values to your vendor.

Assessing Particulates, Vibration, and Physical Constraints

Temperature represents only one dimension of environmental stress. Particulate loading, mechanical vibration, and physical space constraints shape camera design equally. Cement kilns produce high alkali dust from raw meal and clinker particles. This abrasive material scours unprotected lens surfaces. Chemical corrosion from alkali vapors attacks electronic components. Steel reheating furnaces generate iron scale that behaves similarly.

Air-purging systems address particulate challenges directly. These systems direct a continuous stream of clean instrument air at the lens. The positive pressure prevents dust from settling on optics.

"All of our cement plant camera systems utilize continuous instrument-air purging. This creates a high-pressure protective barrier over the camera lens, preventing the abrasive cement dust from settling on the optics or damaging the sensor." — Luming Engineering Team

Vibration presents another consideration. Rotary kilns, pusher furnaces, and walking-beam furnaces transmit mechanical shock through their structures. Camera mounts must absorb this energy without compromising alignment. Physical constraints also matter. Existing sight ports, wall thickness, and clearance around the furnace dictate maximum camera dimensions. A thermal camera that cannot fit through your available opening serves no purpose, regardless of its capabilities. Document these constraints before contacting vendors. This environmental profile enables meaningful comparisons between competing industrial thermal monitoring solutions.

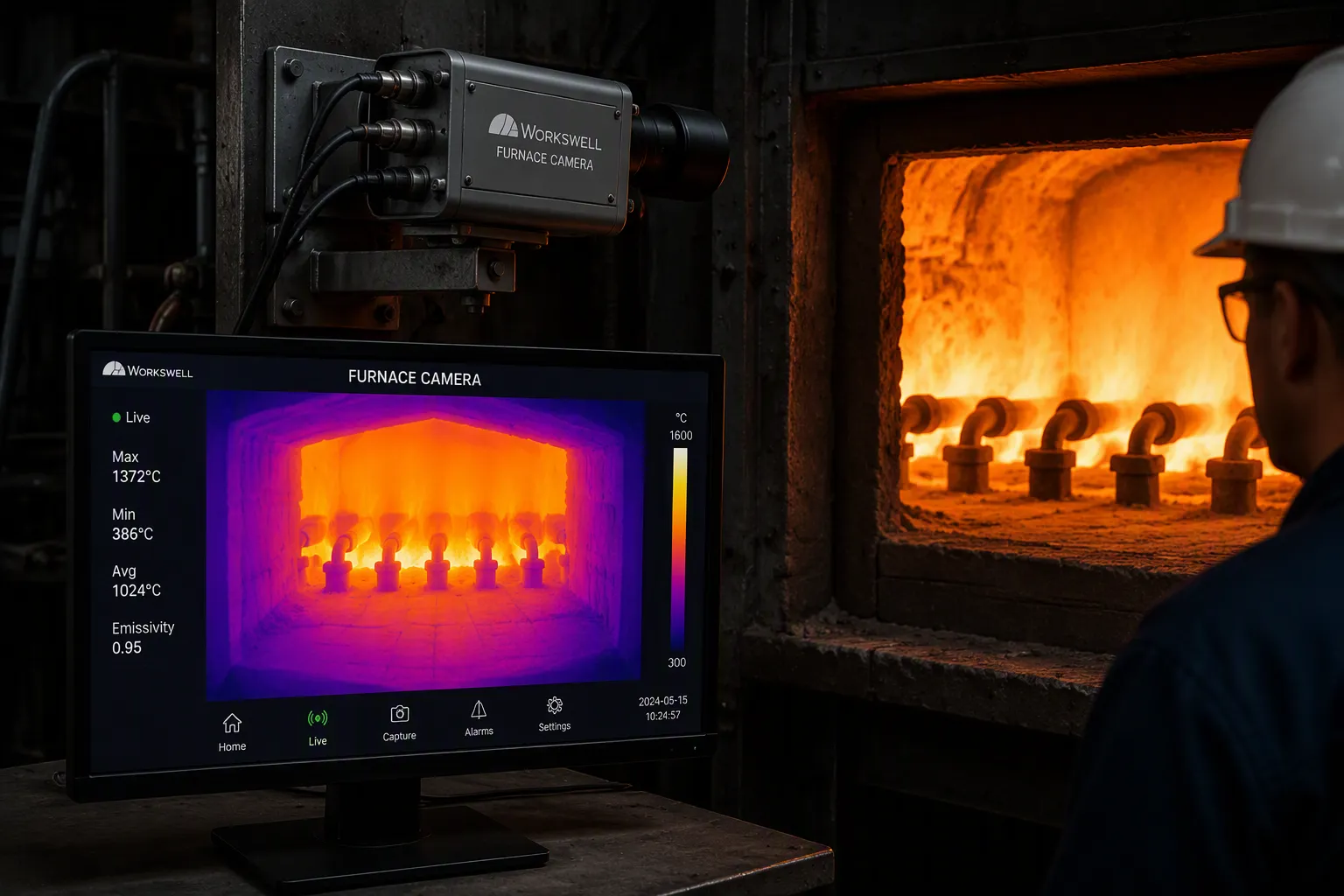

Image Clarity: Matching Resolution to Your Monitoring Goals

Once you have defined the environmental conditions, attention turns to what the camera will actually show you. Image clarity determines whether operators can spot a developing problem or miss it entirely. The right resolution depends entirely on your monitoring objectives. A cement kiln operator watching for flame stability needs different performance than a steel plant engineer inspecting burner tips for erosion.

Pixel Count vs. Field of View for Detailed Inspection

Resolution decisions begin with a simple question: what is the smallest object you must detect? A 2-inch crack in refractory lining, for instance, demands far more detail than a general view of flame shape. The distance between the camera and the target also matters. A camera positioned 30 feet from the furnace wall spreads its pixels across a wider area than one mounted just 10 feet away.

For general flame monitoring, a standard definition of 640×480 pixels often provides adequate visibility. Operators can observe overall combustion patterns and identify major disruptions. This resolution level suits applications where the goal is simple process awareness rather than detailed inspection.

Detailed inspection tasks require higher resolution. Examining burner tips, tube conditions, or refractory hot spots demands a 1280×1024 sensor or better. The difference becomes apparent when comparing the two options:

Higher resolution means more detail and accuracy. This principle holds true across all thermal imaging applications. A 1280×1024 sensor captures subtle temperature variations that a lower-resolution unit would average together. These variations often signal the earliest stages of equipment failure.

For furnace and kiln refractory inspection, a camera capable of 2000°C measurements is required for refractory hot spot detection and predictive maintenance of furnace linings. A thermal camera with this extended range enables operators to identify thinning refractory before a breakthrough occurs.

Field of view interacts with resolution in a critical way. A wide field of view covers more area but spreads available pixels thinner. A narrow field of view concentrates pixels on a smaller region, producing sharper detail. Some advanced thermal cameras offer dual field-of-view options, allowing operators to switch between broad surveillance and focused inspection without changing hardware.

Frame Rate for Dynamic Process Monitoring

Resolution captures detail, but frame rate captures motion. Dynamic processes like flame behavior change rapidly. A camera that refreshes too slowly misses critical fluctuations. Burner flames flicker, pulse, and shift in response to fuel pressure changes, air flow adjustments, and material feed variations.

Research on steel reheating furnaces shows that capturing dynamic flame behavior requires high-speed imaging, often at 30 to 60 frames per second (fps), to observe flame oscillation patterns accurately. However, for continuous thermal analytics and automated data logging, extracting key trend data at optimized sampling rates can balance computational efficiency with analytical insight. It enables real-time execution on standard edge-processing hardware while still producing a data stream rich enough to detect anomalies.

Operators watching for combustion instability benefit from high frame rates. They can observe flame oscillation patterns and identify developing problems before they escalate. Slower refresh rates might miss brief flame fluctuations, while optimized data extraction prevents system overload.

The choice of frame rate also affects data storage requirements. Higher frame rates produce larger data volumes, demanding more storage capacity and processing power. A well-balanced stream provides continuous monitoring without overwhelming system resources. This efficiency matters for plants running multiple thermal cameras across several furnaces simultaneously.

Frame rate requirements vary by application. General observation may tolerate slower refresh. Detailed combustion analysis or safety-critical monitoring may demand faster rates. The key principle remains consistent: match the frame rate to the speed of the process you must observe. A thermal camera that refreshes too slowly creates blind spots in time, just as low resolution creates blind spots in space.

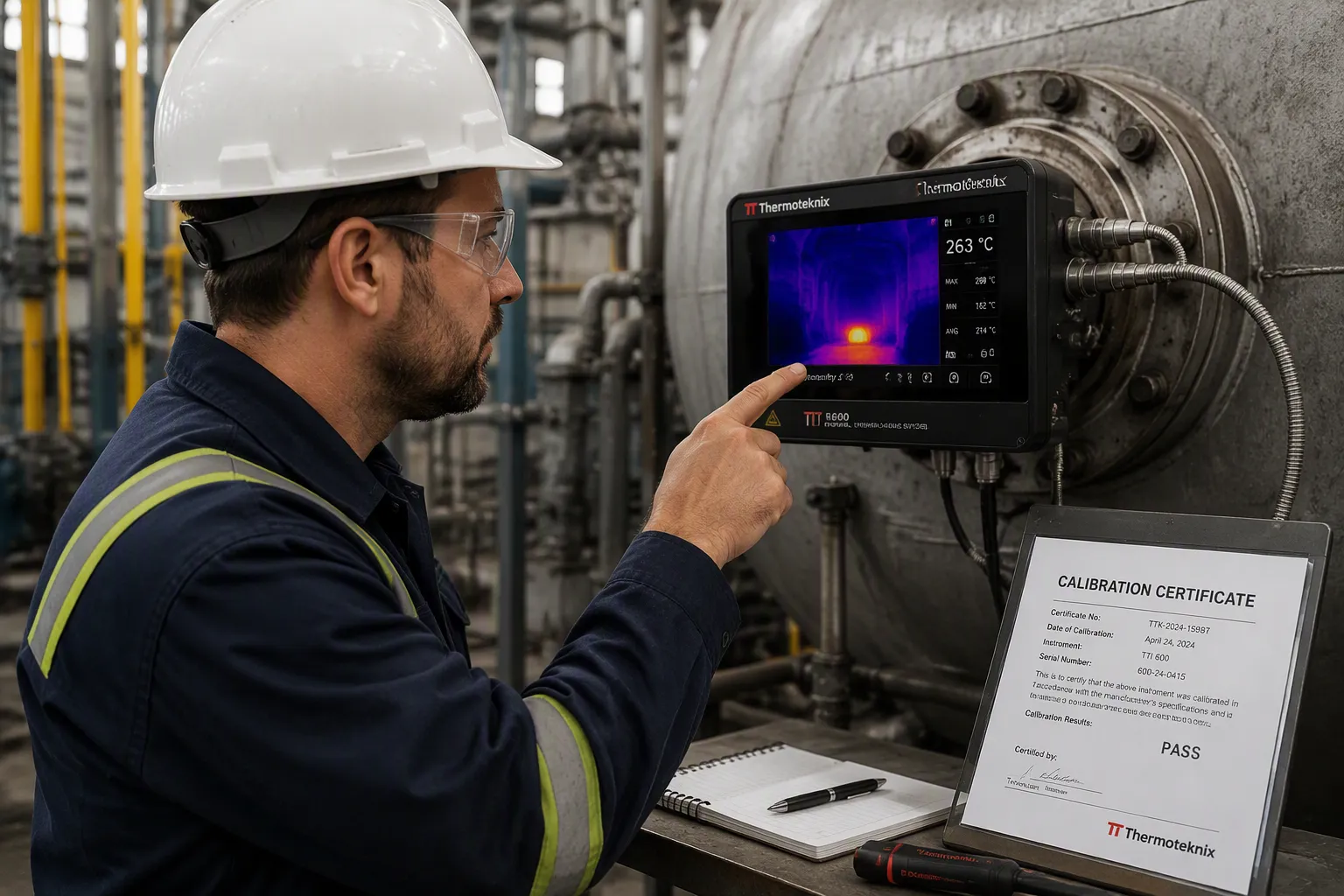

Thermal Accuracy: Why Sensitivity and Calibration Matter

A camera that produces a beautiful picture of your furnace interior may still fail at the most important job: measuring temperature accurately. Visual clarity and thermal accuracy are entirely different capabilities. Standard furnace cameras capture light reflected from surfaces. True thermal cameras detect infrared radiation emitted by objects based on their temperature. This distinction determines whether you receive qualitative images or quantitative data you can trust for operational decisions.

Understanding NETD for Precise Temperature Data

Noise Equivalent Temperature Difference, or NETD, measures the smallest temperature difference a thermal sensor can distinguish from background noise. This specification matters more than pixel count when your goal is temperature measurement. A high-resolution sensor with poor NETD produces detailed images of uniform color. A lower-resolution sensor with excellent NETD reveals subtle thermal patterns that signal developing problems.

Quality thermal imaging systems are characterized by low NETD values, enabling detection of minute temperature variations. Such sensitivity proves essential for identifying early-stage refractory wear. A thinning refractory lining produces a temperature increase of just a few degrees at first. Operators who catch this change early can schedule repairs during planned outages. Those who miss it face unexpected breakthroughs that halt production for days.

Burner imbalance presents another scenario where NETD matters. Uneven fuel distribution creates slight temperature variations across the flame pattern. These differences are often slight but detectable. A thermal camera with high NETD averages these variations into a uniform reading. A sensitive unit with low NETD displays them as distinct thermal zones. Operators can then adjust individual burner valves to restore balance before combustion efficiency degrades.

The Role of Emissivity and Radiometric Calibration

Detecting temperature differences represents only half the challenge. Measuring absolute temperature values requires radiometric calibration. A radiometric thermal camera converts each pixel's infrared signal into a precise temperature reading. Non-radiometric models produce thermal images without quantitative data. These images show patterns but cannot answer the question: "Exactly how hot is this surface?"

Emissivity complicates absolute temperature measurement. Every material radiates infrared energy with different efficiency. A perfect blackbody has an emissivity of 1.0, meaning it emits all possible radiation at its temperature. Real materials emit less. Refractory brick typically has high emissivity. Oxidized steel surfaces also have high emissivity. Clean metal surfaces have low emissivity. A thermal camera calibrated for emissivity of 1.0 would underreport the temperature of a low-emissivity surface by hundreds of degrees.

Modern thermal cameras for furnace applications include emissivity correction settings. Operators input the known emissivity value for the material being observed. The camera then compensates its calculations accordingly. This adjustment transforms raw infrared data into accurate temperature measurements. Some advanced systems offer multiple emissivity presets for different furnace zones. Operators can switch between refractory inspection and burner analysis without recalibrating the entire system.

Radiometric calibration also requires periodic verification. Thermal sensors drift over time as components age. Regular calibration against a known reference source maintains measurement accuracy. Many industrial facilities schedule annual calibration checks for their thermal cameras. This practice ensures that temperature data feeding into control systems remains trustworthy throughout the camera's service life.

The combination of low NETD and proper radiometric calibration delivers actionable thermal intelligence. Operators gain the ability to detect subtle anomalies early and quantify their severity precisely. This capability transforms furnace monitoring from reactive troubleshooting to proactive maintenance planning.

Cooling and Purge: Ensuring Survival and a Clear View

Environmental assessment determines the cooling strategy. Two primary methods exist: air-cooled and water-cooled systems. Each method serves different furnace conditions. The choice depends on available utilities, ambient temperature, and heat flux levels.

Comparing Air-Cooled and Water-Cooled Systems

Air-cooled systems use compressed air to remove heat from the camera housing. These systems offer simplicity and lower cost. They require a reliable source of clean, dry, high-pressure air. The air flows through channels around the camera body. It carries heat away from sensitive electronics. Air-cooled designs work well in moderate temperature environments where compressed air is readily available.

Water-cooled systems provide more robust thermal protection. Water absorbs heat more efficiently than air. These systems handle extreme environments where air cooling cannot maintain safe temperatures. Water-cooled designs require a dedicated water source, supply lines, and return plumbing. Installation complexity increases. Operators must monitor water quality to prevent scaling and corrosion. Despite these requirements, water-cooled systems remain the standard for the most demanding furnace applications.

The selection between these methods follows from the environmental profile developed earlier. A camera monitoring a moderate-temperature zone with available compressed air may use air cooling. A camera facing the highest heat flux zones typically requires water cooling. Some advanced systems combine both methods for maximum thermal protection.

The Necessity of Air Purge for Lens Protection

Cooling protects the camera's internal electronics. A separate function protects the lens. Air purge systems direct a continuous stream of clean air across the viewing window. This airflow creates a positive pressure barrier. The barrier prevents soot, dust, and debris from settling on the lens surface. Without this protection, the lens becomes obscured within minutes of operation.

Most Luming furnace camera systems require clean, dry compressed air at approximately 15–20 PSI and 15–20 SCFM to provide adequate cooling and purge the viewing window.

These pressure and flow requirements ensure consistent lens clarity. The purge air must remain clean and dry. Contaminants in the air supply can deposit on the lens. Oil-free compressors and moisture separators protect the air quality.

Luming designs its thermal camera systems with integrated purge technology. This integration simplifies installation. Operators connect a single air supply that serves both cooling and purge functions. The unified approach reduces piping complexity and potential failure points. The result is reliable operation in the harshest furnace environments.

A clear lens delivers accurate visual data. A thermal camera with a clean viewing window provides trustworthy temperature measurements. Effective cooling and proper air purge ensure the camera survives and performs throughout its service life.

Integration and Usability: Fitting into Your Plant's Ecosystem

A furnace camera delivers value only when its data reaches the people and systems that act on it. The most capable imaging hardware becomes a costly blind spot if operators cannot view its feed or if the control system cannot interpret its output. Integration planning must occur before purchase, not after installation.

Connectivity and Control System Compatibility

Modern furnace cameras offer multiple output options. Analog signals provide basic compatibility with legacy displays. Digital protocols such as GigE Vision, RTSP, and Modbus TCP enable direct connection to plant networks. The choice depends on your existing infrastructure and the level of data analysis you require.

A thermal camera feeding directly into a distributed control system (DCS) or programmable logic controller (PLC) enables automated alarm generation. Temperature thresholds trigger alerts when refractory hot spots exceed safe limits. Operators receive notifications without continuously watching a monitor. This automation transforms passive surveillance into active process protection.

Industry 4.0 initiatives extend this integration further. Infrared cameras paired with local edge computing and low-latency fiber-optic networks process data instantly within secure plant environments. Plant engineers access real-time equipment health information directly from the control room or via secure VPN. AI-powered analysis detects anomalies such as hot spots or refractory wear early in their development. These predictive failure models reduce enterprise downtime by 15–20 percent and lower failure rates by 30 percent. Most companies recover their investment within six months through reduced energy waste and maintenance costs. Continuous remote monitoring also minimizes worker exposure in high-risk furnace environments.

The progression from basic monitoring to full automation follows a clear path. Manual review of camera feeds provides historical awareness. Data analysis tools identify abnormal values and guide corrective actions. Fully automated systems use AI-driven predictive analysis to prevent failures before they occur.

Lens Selection, Mounting, and Form Factor

Physical installation constraints often determine which camera model fits your plant. Existing sight ports may limit maximum housing diameter. Wall thickness affects insertion depth requirements. Clearance around the furnace dictates whether a straight or angled viewing path works best.

Lens selection depends on the distance between camera position and the target area. A wide-angle lens suits close-range monitoring of burner flames. A telephoto lens provides detailed inspection of distant refractory surfaces. Some systems offer interchangeable lenses, allowing operators to adapt one camera housing to multiple monitoring tasks.

Mounting hardware must accommodate thermal expansion and mechanical vibration. Rigid mounts transmit shock directly to sensitive optics. Flexible mounting systems absorb this energy while maintaining alignment. Proper installation ensures the camera remains stable and accurate throughout its service life.

Thermal camera systems are designed with integrated mounting solutions that simplify deployment. The unified approach reduces installation complexity and potential failure points. A well-integrated thermal camera becomes a seamless component of your plant's monitoring ecosystem, delivering reliable data exactly where operators need it.

The right choice among furnace cameras fits your specific thermal, visual, and data requirements. No single model serves every application. The most expensive option may fail where a simpler design thrives.

When speaking with vendors, ask these questions:

• What is the maximum ambient temperature rating?

• What is the NETD value?

• What are the air or water requirements for cooling?

• How does the camera integrate with our existing control system?

As demonstrated in our successful global deployments, such as the kiln monitoring projects at the Tai Wen Long Cement Plant in Cambodia, industrial thermal monitoring through high-quality cameras pays for itself. High-temperature monitoring becomes a strategic advantage. Reduced downtime and optimized combustion justify the investment.

A well-chosen camera delivers measurable returns:

FAQ

How do I know if I need a visual camera or a thermal camera?

Visual cameras show flame shape and physical conditions. Thermal cameras measure temperature data. If your goal includes detecting refractory wear, burner imbalance, or tube hot spots, you need radiometric thermal imaging. Visual observation alone cannot quantify temperature differences that signal developing problems.

What maintenance does a furnace camera require?

Regular maintenance focuses on three areas: lens cleanliness, air filter replacement, and calibration verification. The air purge system keeps optics clear during operation. Operators should inspect purge air quality monthly. Annual radiometric calibration against a known reference source maintains temperature measurement accuracy.

Can one camera serve multiple furnace zones?

Yes, with proper lens selection. Interchangeable lens systems allow one camera housing to adapt to different monitoring distances. A wide-angle lens covers burner areas at close range. A telephoto lens inspects distant refractory surfaces. Some advanced systems offer dual field-of-view options for switching between broad surveillance and focused inspection.

What happens during a power or air supply failure?

Most furnace camera systems include fail-safe designs. Water-cooled systems require continuous water flow. Air-cooled systems need constant compressed air pressure. Plants should install backup utilities or retraction mechanisms. A retractable camera mount withdraws the probe from the furnace during utility loss, protecting the equipment from thermal damage.
