Maximize your plant's operational safety with our advanced Rotary Kiln Monitoring Camera and Rotary Kiln Thermographic Monitoring System. Engineered for extreme industrial environments, this kiln monitoring system provides 24/7 high-resolution thermal imaging to detect hotspots and potential refractory failures before they lead to costly shutdowns.
Featuring non-contact temperature measurement and a 360° panoramic scanning view, our kiln monitoring system solution allows operators to monitor shell integrity and kiln lining health in real-time. Equipped with a ruggedized, air-cooled protective housing and intelligent alarming software, it ensures stable performance amidst high heat and heavy dust. Whether for cement, lime, or metallurgical kilns, our kiln monitoring system is the ultimate tool for preventive maintenance, ensuring long-term durability and optimized fuel efficiency.
Real-time Full-shell Scanning: As a premier kiln shell scanner, the Rotary Kiln Thermographic Monitoring System provides a continuous thermal map of the entire kiln shell. It is essential for kiln shell monitoring cement plants rely on to identify potential refractory failures before they lead to costly shutdowns, helping to avoid kiln downtime.
Intelligent Hotspot Alarming: Functioning as an advanced kiln hot spot detection system, high-sensitivity infrared cameras for temperature measurement automatically detect and alert operators to abnormal temperature rises. This ensures effective kiln refractory monitoring in specific zones.
Ruggedized Industrial Design: The kiln monitoring system features an IP66-rated heavy-duty protective housing with an integrated air-purge system to withstand extreme heat and dust.
Advanced Visual Analysis Software: Includes professional thermography software for rotary kiln predictive maintenance, trend analysis, historical data logging, and automated report generation, directly contributing to cement kiln downtime reduction.
360° Panoramic View: Captures and stitches thermal images into a seamless panoramic view of the rotating kiln for comprehensive cement kiln thermal monitoring.
Rotary Kiln Monitoring System Main Technical Features
The LM-NZ500C rotary kiln monitoring system integrates advanced cement kiln thermal monitoring with intelligent process control to deliver unmatched operational insight for cement plant monitoring and industrial facilities.
Precision Temperature Measurement & Imaging
Unlike standard CCTV, this specialized cement kiln camera utilizes far-infrared technology to automatically and accurately detect material surface temperatures and workpiece positioning inside the kiln, regardless of distance. This rotary kiln monitoring system provides dual-output capability: traditional visible-light video and high-definition thermal images coexist on the same screen. Operators can select up to 16 arbitrary points for real-time temperature display, with a measurement accuracy of ±2%. Optional 4-20mA output allows seamless integration with existing DCS or PLC systems for automated process control. When temperatures rise or fall beyond set thresholds, the real time kiln monitoring system triggers immediate alarms, functioning as a reliable kiln hot spot detection system to prevent refractory damage and reduce kiln downtime.
Intelligent Probe Protection with PLC Control
Equipment safety is paramount in high-temperature environments. Addressing the common question of what is a camera retraction system, this kiln monitoring system employs advanced PLC control technology to automatically manage the insertion and retraction of the kiln camera probe. In the event of power failure, compressed air supply interruption, or if the internal temperature of the probe housing exceeds safe limits, the mechanism automatically withdraws the probe from the kiln. This failsafe protection ensures the longevity of the kiln refractory monitoring system and prevents costly damage to sensitive optical components.
Complete Integrated Solution
As a comprehensive cement kiln monitoring system, each LM-NZ500C rotary kiln monitoring system package includes:

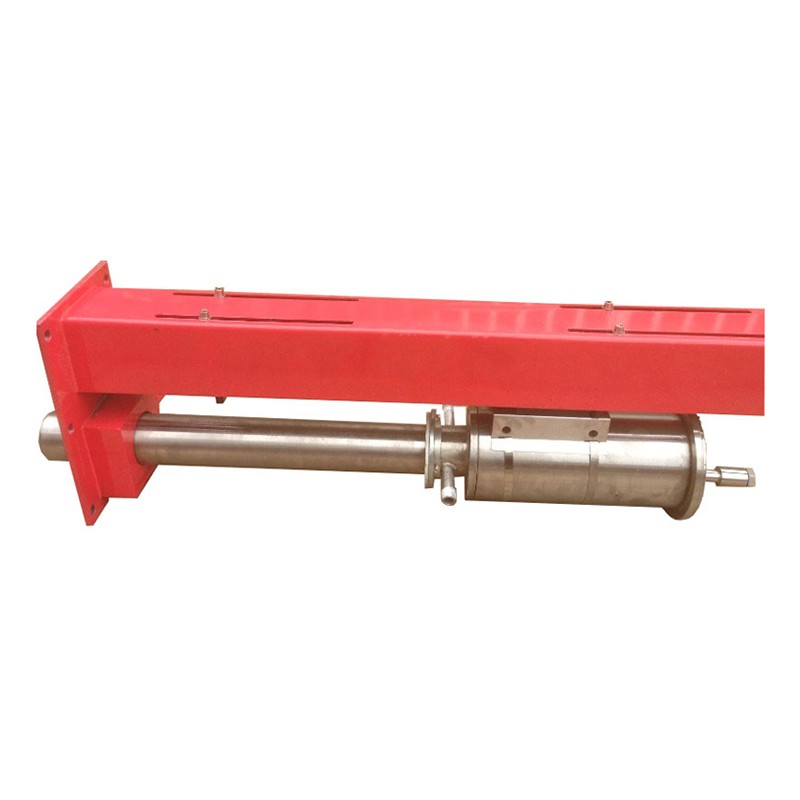

Kiln camera probe with protective housing

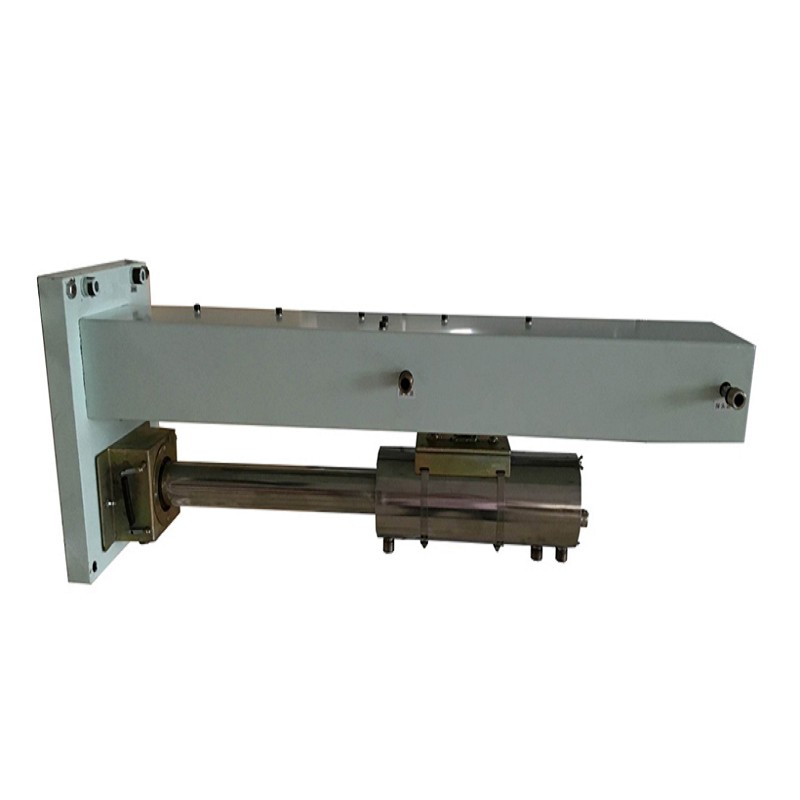

Automatic actuation/retraction device
PLC control cabinet
Air preparation unit (filters and regulators)
Fiber optic cables and transmission equipment
Industrial computer pre-loaded with professional thermography software
Monitor and printer for on-site reporting
Installation is straightforward, with on-site commissioning and operator training typically completed in just 3 days.

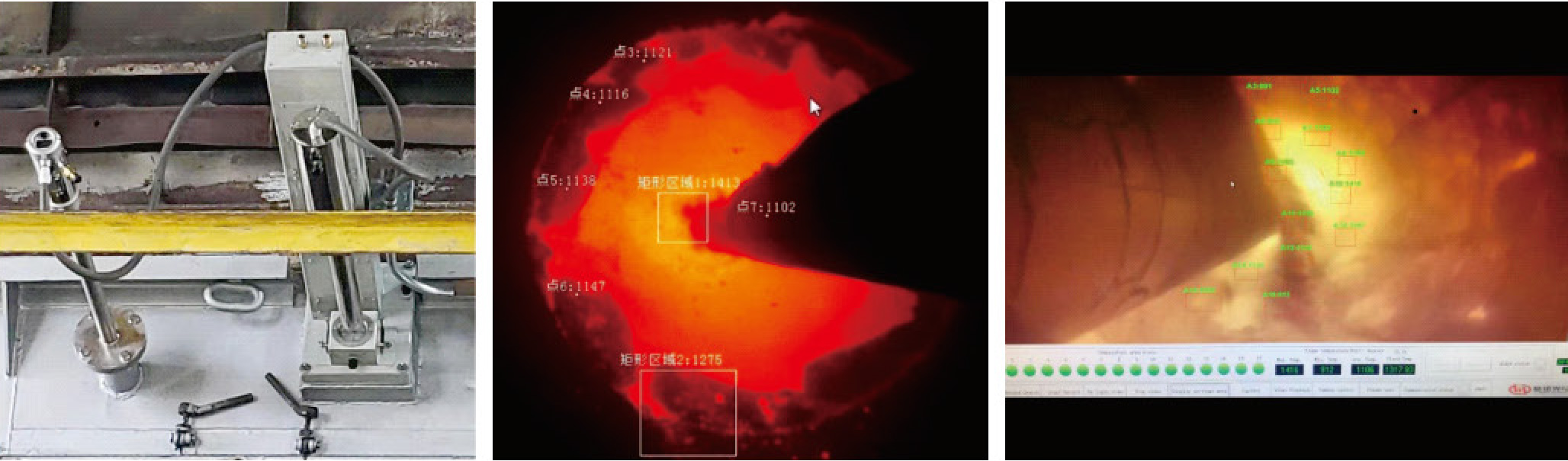

Advanced Thermographic Analysis Software
The included software suite transforms raw thermal data into actionable intelligence. The intuitive interface displays:
Real-time temperature of unlimited points and zones
Thermal profiles and isothermal maps
Differential temperature analysis
Historical data trending for rotary kiln predictive maintenance
High-temperature point tracking
Configurable individual or group alerts
This powerful software, essential to the rotary kiln monitoring system and its kiln camera, enables operators to visualize thermal gradients, identify developing hot spots, and make informed decisions to optimize kiln operation and refractory life.
Long-Distance Digital Transmission
The rotary kiln monitoring system features an infrared digital electronic coupling kiln camera designed for installation through a standard 400mm wall casing, complete with fault prevention mechanisms. All temperature data and high-definition video (utilizing 60Hz full imaging technology) are transmitted error-free via digital transmission systems up to 25 kilometers to the central control room. This ensures that operators can monitor fuel combustion efficiency, product quality, and real time kiln monitoring conditions from a safe, remote location, guaranteeing accurate and safe kiln operation while maximizing productivity.
Applicable to furnace with a wall thickness of about 500mm, a wide range of viewing Angle.
Ambient temperature | Temperature in the furnace ≤2000℃, control system ≤70℃ |
Automatic exit device | Automatic exit function. When power failure, gas stop, over temperature, and water pressure is low, the probe can automatically return from the furnace exit device with a stroke of 500mm, and manually enter the exit function |
Control device | PLC programmable control, 8 inputs, 4 outputs, two levels of control, can achieve the on-site central control operation of two places of power |
Supply requirements | Power supply voltage AC220V±10%, power supply frequency 50Hz |
Air supply requirements | Inlet pressure of compressed air is 0.3~ 0.7mpa Inlet temperature of compressed air ≤35℃, minimum flow rate of compressed air 0.3m /min |
Image index | Resolution 2 million pixels SIGN al-to-noise ratio 56dB |
Visual field Angle | Random configuration is 17°~81C° |
Temperature measurement | Temperature measurement range 700°~1800° |
Temperature measuring points | 16 temperature measuring points are optional on the screen |
Optional cable configuration | Power cable AVV3×1, network cable At6, control cable AVPV6×0.5 |
Cooling air requirements for substrates | Flow rate 300L/min |
Scroll cooling tube | When the inlet of compressed air is greater than 0.35MP, the outlet temperature difference of compressed air is 23°C |
Installation distance | The maximum distance from the control device to the automatic exit device is 20M, and the maximum distance from the central control room to the site is 25KM |
The LM-NZ500C rotary kiln monitoring system is widely recognized as the premier solution for rotary kiln predictive maintenance and operational safety across diverse high-temperature industrial sectors. Our kiln thermal imaging camera technology delivers measurable ROI through cement kiln downtime reduction, extended refractory life, and optimized fuel consumption.
Cement Manufacturing Facilities
Challenge: Refractory degradation and unexpected kiln shutdowns cost cement plants millions in lost production.
Solution: Our cement kiln monitoring system provides continuous kiln shell inspection and temperature mapping, detecting hot spots before they cause catastrophic failure. Early warning alerts enable planned maintenance, reducing unplanned downtime by up to 40% and extending brick life by 25-30%.
Lime Calcination Kilns (Lime Kiln Camera System)
Challenge: Maintaining consistent calcination temperatures while preventing shell damage from thermal stress.
Solution: Real time kiln monitoring and thermal imaging ensures optimal burning zone temperature control, improving product quality consistency while protecting kiln integrity. The 360° scanning capability monitors the entire kiln circumference for uniform heat distribution, acting as a highly effective lime kiln monitoring system.
Metallurgical & Sponge Iron Kilns
Challenge: Extreme operating temperatures and abrasive materials accelerate refractory wear in DRI plants.
Solution: Our ruggedized kiln monitoring system withstands harsh metallurgical environments while providing precise temperature profiling. Detect coating fall-offs and brick thinning early, preventing costly emergency repairs and production losses.
Alumina Refineries
Challenge: Corrosive calcination environments and high moisture content create unique monitoring challenges.
Solution: IP66-rated housing with air-purge protection ensures reliable operation in dusty, corrosive alumina calcination kilns. Advanced thermography software tracks temperature trends across multiple zones for predictive maintenance scheduling.
Chemical Processing Kilns
Challenge: Variable material compositions and strict quality control requirements demand precise temperature management.
Solution: Multi-point temperature measurement (up to 16 arbitrary points) and isothermal analysis enable precise process control. Automated report generation supports quality assurance documentation and regulatory compliance.
Why Industries Choose Our Kiln Monitoring System:
Prevent Catastrophic Failures: Detect refractory wear 3-6 months before shell damage occurs
Reduce Maintenance Costs: Shift from reactive to rotary kiln predictive maintenance strategies
Optimize Fuel Efficiency: Identify heat loss patterns and improve combustion efficiency by 5-15%
Extend Equipment Life: Proper thermal management increases refractory lifespan by 20-35%
24/7 Remote Monitoring: Access real time kiln monitoring conditions from central control room or mobile devices
Q: How does a kiln thermal imaging camera differ from a standard CCTV camera for cement kiln monitoring?
A: A standard CCTV camera shows only visible light. Our kiln temperature monitoring system uses a specialized infrared sensor to measure the actual thermal radiation emitted by the kiln shell. This allows it to quantify temperatures and detect hotspots indicative of internal refractory wear, which is invisible to the naked eye and standard cameras.
Q: Can this rotary kiln monitoring system really help avoid kiln downtime and prevent kiln shell damage?
A: Yes. As a dedicated kiln hot spot detection system, its primary function is to identify abnormal temperature increases that signal thinning or failed refractory. By alerting you to these "hot spots" early, you can take corrective action—such as adjusting the burner flame or coating—before the steel shell is damaged.
Q: What is included in a typical cement kiln camera system package?
A: A complete solution includes the high-temperature probe with protective housing, the automatic retraction device, a PLC control cabinet, air filtration units, the advanced thermography software pre-loaded on a computer, and all necessary cabling. On-site training is also available.
Q: How does the system support rotary kiln predictive maintenance?
A: By providing the continuous kiln shell monitoring cement operators need, the system tracks thermal profiles and historical data. This allows plants to shift from reactive repairs to predictive maintenance, significantly achieving cement kiln downtime reduction.
Q: What is a camera retraction system in this kiln camera?
A: It is an automated safety mechanism. If the kiln monitoring system detects power failure, air supply loss, or over-temperature, the PLC automatically withdraws the probe from the furnace to prevent melting and damage to sensitive optical components.
User manuals, video tutorials, and on-site training (upon request)
