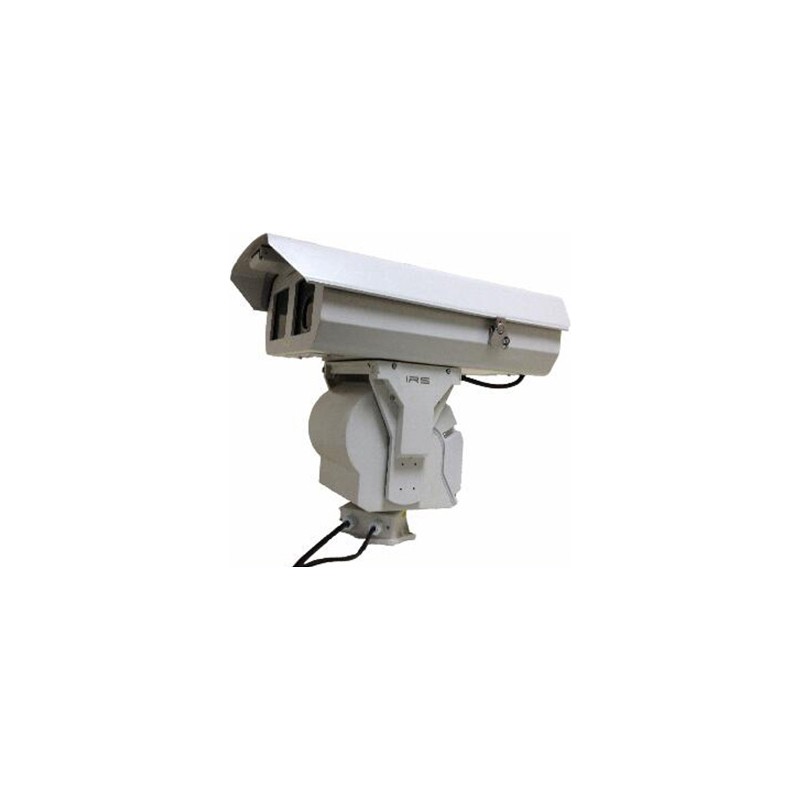

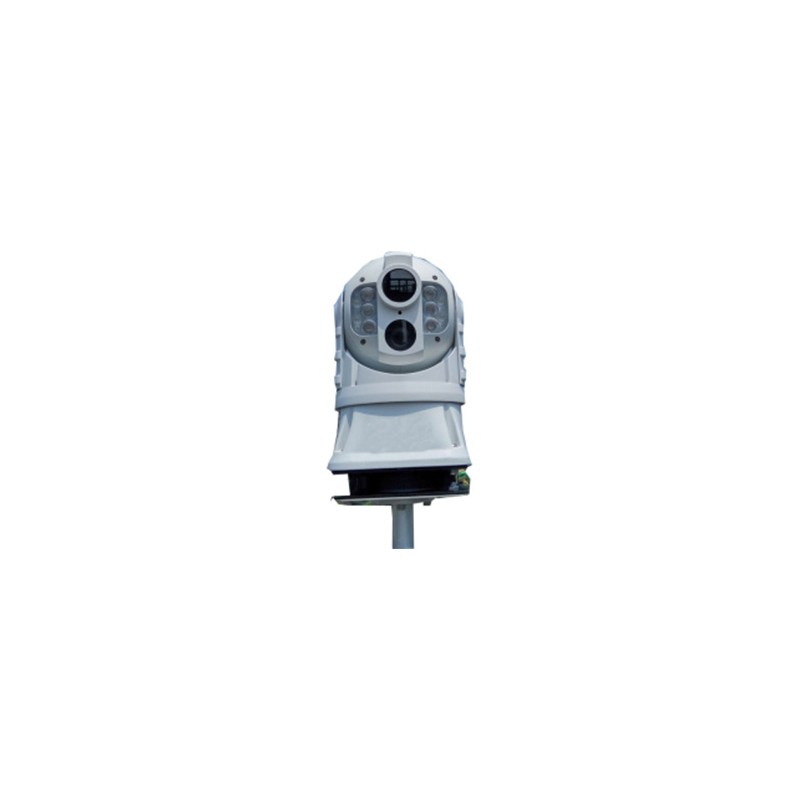

1. One side of the camera is marked with a yellow chart and the other is an infrared camera
2. The power consumption of the whole machine is about 24W and the weight is about 38kg
3. Operating temperature -25 to 60 degrees
4. Working voltage of single head (excluding camera) : DC12V
5. Single head (excluding camera) operating current: 1A
6. Maximum current of single head (excluding camera) : 1.6A
7. Machine operating current: 2.08A
8. Maximum rotation Angle of equipment: 360 degrees horizontal / 90 degrees vertical
9. Equipment protection level: IP66
10. Support video output: Onvif/http/rtsp output
1. Noise equivalent temperature difference (NETD) is 50mk and below
2. Operating temperature -40 to 60 degrees
3. Thermal imaging focal length: 35mm/50mm/75mm (optional)
4. Focusing mode: fixed focus
5. Detector detection type; Uncooled focal plane microbolometer
6. Thermal imaging detector resolution: 384x288/640x480 (optional)
7. Pixel spacing: ≤17 μm, response band: 7 μm-14 μm

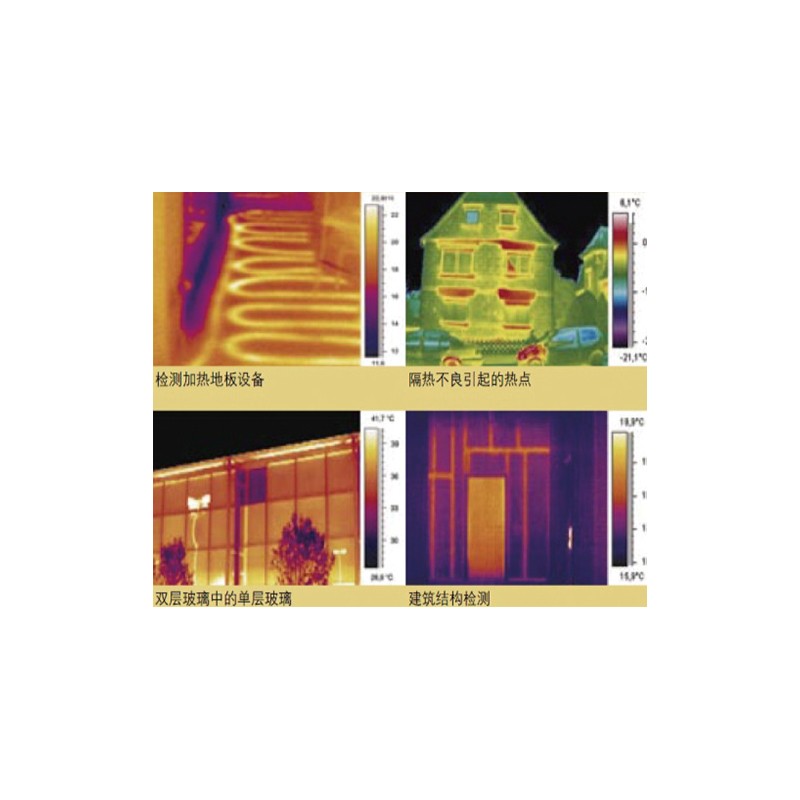

8. Thermal imaging black heat, white heat, iron red, rainbow and other at least 7 kinds of false color mode optional
9. Video output: Digital video
10. The equipment supports infrared monitoring with gigabit Ethernet output, dynamic temperature measurement function
11. The movement adopts NBT patented technology without blind vision and baffle structure to achieve continuous screen monitoring without interruption.
12. The movement USES TIE digital image details to enhance the patented technology, the picture is more delicate and clear
13. Customize start up logo screen
14. Full screen custom OSD overlay
15. Overvoltage undervoltage protection function, reverse connection protection function
16. Built-in fire risk temperature warning module;
17. Support thermal imaging video area intrusion detection, entry area detection and exit area detection
18. Support isotherm function and alarm function for temperature anomalies. Alarm can be carried out if the preset temperature is exceeded in the thermal imaging detection temperature area
19. Supports the automatic protection function of infrared thermal imager and has the function of strong light detection and infrared sensor shielding
Q1: Can thisexplosion-proof thermal imager be used as a furnace monitoring camera in high-temperature industrial environments?
A: Yes, this furnace monitoring camera is specifically designed for harsh industrial environments. With an operating temperature range of -40°C to 60°C and IP66 protection rating, it can withstand extreme conditions found in cement, steel, and glass manufacturing facilities. The explosion-proof construction and thermal imaging capabilities make it ideal for continuous furnace temperature monitoring and early fire detection.
Q2: What temperature measurement and alarm functions does this furnace monitoring camera provide?
A: This furnace monitoring camera features advanced thermal imaging with NETD of 50mk and below for precise temperature detection. It supports isotherm function and alarm function for temperature anomalies, with customizable alarm triggers when preset temperatures are exceeded in the detection area. The system also includes built-in fire risk temperature warning module and supports dynamic temperature measurement with gigabit Ethernet output.
Q3: What are the installation and integration capabilities of this furnace monitoring camera?
A: The furnace monitoring camera supports multiple video output formats including Onvif/HTTP/RTSP for easy integration with existing monitoring systems. It features 360-degree horizontal and 90-degree vertical rotation, with optional focal lengths of 35mm/50mm/75mm to suit different monitoring distances. The system includes NBT patented technology for continuous screen monitoring without interruption and TIE digital image enhancement for clearer, more detailed thermal imaging pictures.
User manuals, video tutorials, and on-site training (upon request)
