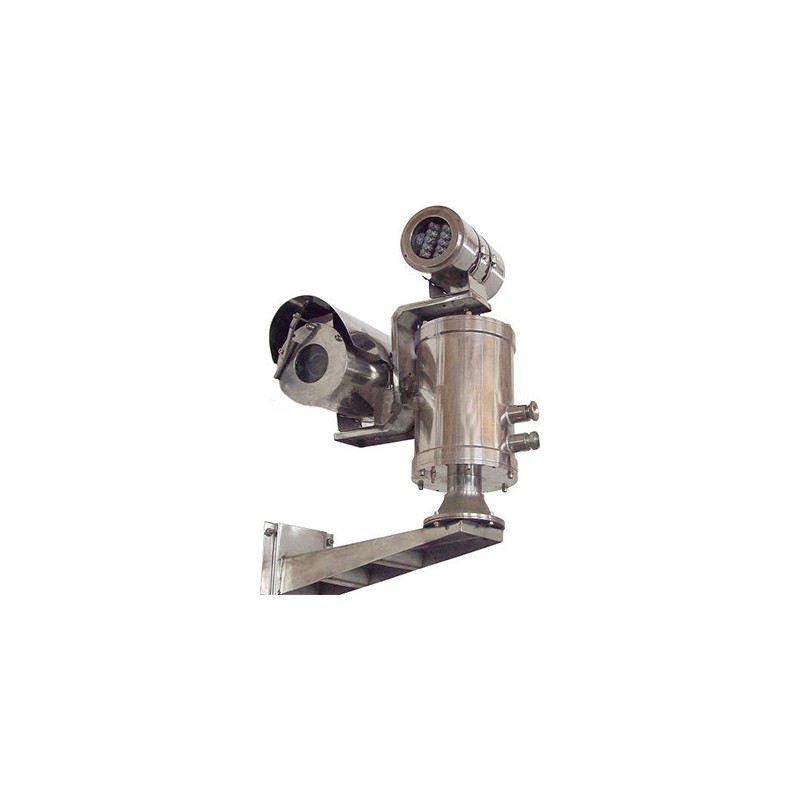

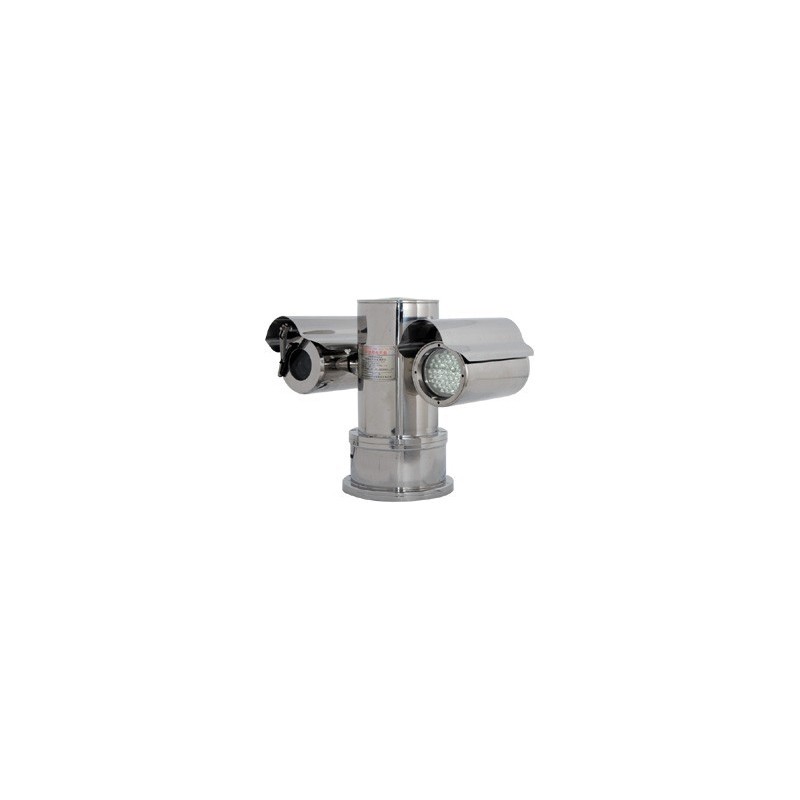

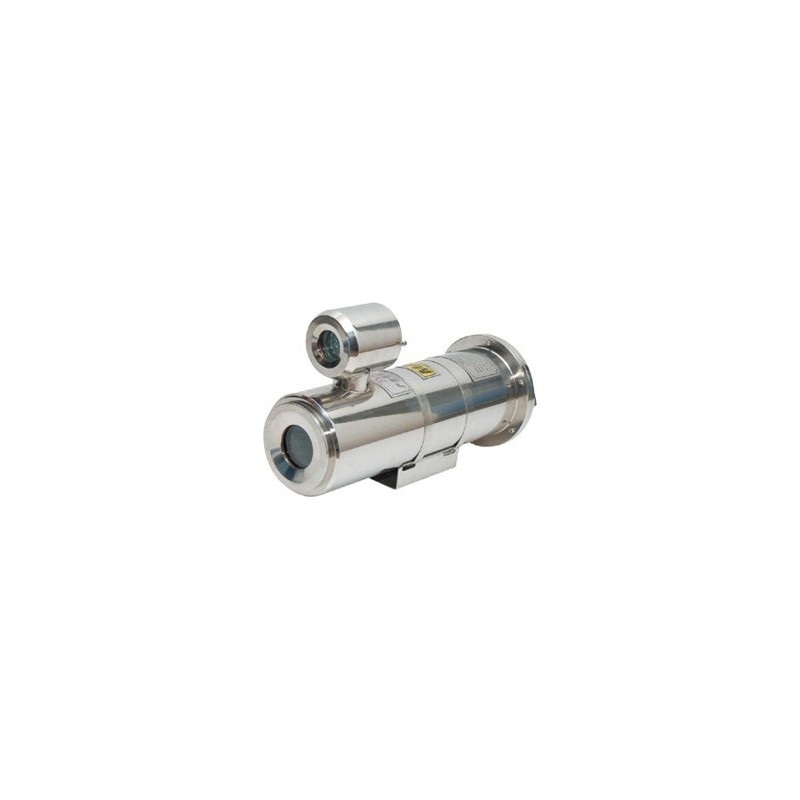

Blast-Proof EX IR Series Intelligent IP Camera

EX IR Series丨Industrial Explosion Proof IP Camera

The Blast-Proof EX IR Series Intelligent IP Camera by Changzhou Luming is a state-of-the-art security solution engineered for hazardous environments. As a high-performance explosion proof IP camera, it integrates advanced network intelligence with rugged hardware to provide 24/7 high-definition monitoring in oil, gas, and chemical facilities.

Model:LM-BS580Ex, 220VC 5A

WhatsApp Now

Blast-Proof EX IR Series Intelligent IP Camera Features

1.Two-factor authentication, Explosion Proof IP Camera is suitable for a variety of environments

2.The Explosion Proof IP Camera case is made of stainless steel

3.Vertical installation

4.High integration of shield, cradle head, decoder and camera

5.Multiple control protocols corresponding to multiple control systems

6.Optional infrared LED illuminator or laser illuminator with 360° continuous horizontal rotation +90° ~ -90° vertical rotation

7.Protection level IP68

8.Contains 128 preset positions

9.Indoor and outdoor installation, all-weather use

10.Mounted by bracket or base

EX IR Series Intelligent IP Camera Technical Parameter

Ex-mark	Exd ⅡCT6 / DIP A20 TA, T6	Automatic heating (optional)	Start automatic heating when the temperature is below -10℃
Material	Stainless steel 304 or 316L	Infrared lamp function	Automatic mode
IP Grade	IP68	electrical connection	3-core cable is connected to the power supply
Horizontal rotation	360°continuous rotation		2 core cable connection control signal
Vertical rotation	90°～-90°		The network outputs a video signal
Horizontal rotation Speed	0.1°/S ～ 25°/S	Infrared lamp assembly
Vertical rotation Speed	0.1°/S ～ 25°/S	Light source	Infrared LED/ array LED/ laser illuminator is optional
Unit weight	28.5Kg	Power Consumption
Gross Weight	31Kg	LED mode	About 20W
Installation	Fixing bracket, base and column	laser illuminator	Different power lasers are selected according to the projected distance
Electrical Specifications		Projection distance
Input voltage	100VAC～240VAC, 50/60Hz	LED Mode	About 100m
Working current	< 1A	laser illuminator	100~300m
Power Consumption	About 100 w	Beam Angle
communication mode	RS-485	Infrared LED	8°
Cc communication Rate	Multiple, settable	ARRAY LED	25°
communication protocol	Compatible with a variety of mainstream control protocols	laser illuminator	2°~15°，According to the projected distance wavelength 850nm/808nm
Preset Positions	128	Control	Automatic electric
Preset position accuracy	≤0.1°

Designed for Hazardous Environments

Oil & Gas Refineries: Robust explosion proof IP cameras for 24/7 offshore and onshore monitoring.

Chemical Processing:Corrosion-resistant stainless steel housing ideal for harsh chemical plants.

Marine & Port Security: IP68-rated waterproof and explosion-proof solutions for maritime safety.

Grain & Dust Industries:Specialized protection against combustible dust explosions.

FAQs

Q1: What makes Luming a reliable explosion proof camera supplier?

A:Luming is a direct manufacturer integrating R&D, production, and quality control under ISO9001 certification. We offer OEM/ODM flexibility with customized housing options (304/316L Stainless Steel). Our products strictly comply with global safety standards, including ATEX, IECEx, and CNEX, ensuring safety in Zone 1, 2, 21, and 22 environments. We also provide a 2-year comprehensive warranty and global technical support.

Q2: Can your explosion proof IP cameras work in extreme temperatures?

A: Yes. Our cameras are engineered for harsh environments. They feature an optional automatic heating module that activates when the temperature drops below -10°C. This ensures stable operation in extreme temperatures ranging from -45°C to +60°C

Q3: Is the camera housing resistant to corrosion and water for outdoor use?

A:Yes. The camera case is made of robust Stainless Steel 304 or 316L, offering excellent corrosion resistance for chemical plants. It also features an IP68 protection rating, ensuring it is fully waterproof and dustproof for marine and outdoor applications.
