For critical steel plant operations, reliable visual monitoring is non-negotiable. The LM-GL508 is a specialized blast furnace top thermal imaging system engineered to provide continuous, high-definition visual intelligence and quantitative thermal data for blast furnace burden distribution monitoring. Designed to withstand extreme temperatures up to 1800°C, this high temperature furnace camera delivers real-time insight into gas flow patterns, charge surface conditions, and temperature distribution—enabling operators to optimize furnace performance and prevent costly disruptions.
As a trusted blast furnace monitoring system supplier, LUMING integrates advanced infrared thermal imaging for blast furnace applications with robust air and water cooled furnace camera technology, ensuring uninterrupted operation in the harshest steel plant environments.
The LM-GL508 employs a comprehensive cooling strategy to ensure reliable operation in extreme heat. This air and water cooled furnace camera utilizes water, air, and nitrogen cooling systems, complemented by imported American vortex cooling technology. This multi-stage approach guarantees that the blast furnace top camera maintains stable performance despite intense internal furnace temperatures exceeding 1800°C.
At the heart of this blast furnace top thermal imaging system is a high-temperature special infrared camera paired with a long-focus pinhole lens. The system delivers high-definition video processing with real-time temperature curve generation, tracking, and detailed thermal analysis. This infrared thermal imaging for blast furnace capability enables operators to visualize blast furnace temperature distribution monitoring across the charge surface, identifying uneven gas flow or abnormal burden patterns before they impact production.
Designed for operational efficiency, the “inner gun” assembly—comprising the lens and camera cover—can be withdrawn directly for rapid inspection, repair, and maintenance. The probe hood is constructed from high-quality stainless steel, providing superior corrosion resistance for long-term reliability in demanding steel plant environments.
To ensure an unobstructed view of the furnace top, the system utilizes advanced spiral purging technology that prevents dust and particulate accumulation on the lens. This critical feature ensures continuous, clear imaging—an essential requirement for any long-term blast furnace monitoring system supplier solution.
With flexible configuration options, feed conditions can be observed directly via computer interface or through external monitors. The Blast furnace top thermal imaging system provides powerful video processing functions for the central control room, enabling operators to monitor burden distribution, detect irregularities, and make data-driven decisions in real time.
Technical parameter | 1. Scanning mode: 625 lines and 25 frames, 2:1 interlacing |
Environment condition | 1. Furnace temperature: ≤1800℃ |
As a comprehensive high temperature furnace camera solution, the LM-GL508 is deployed across critical monitoring points in steel mill operations:

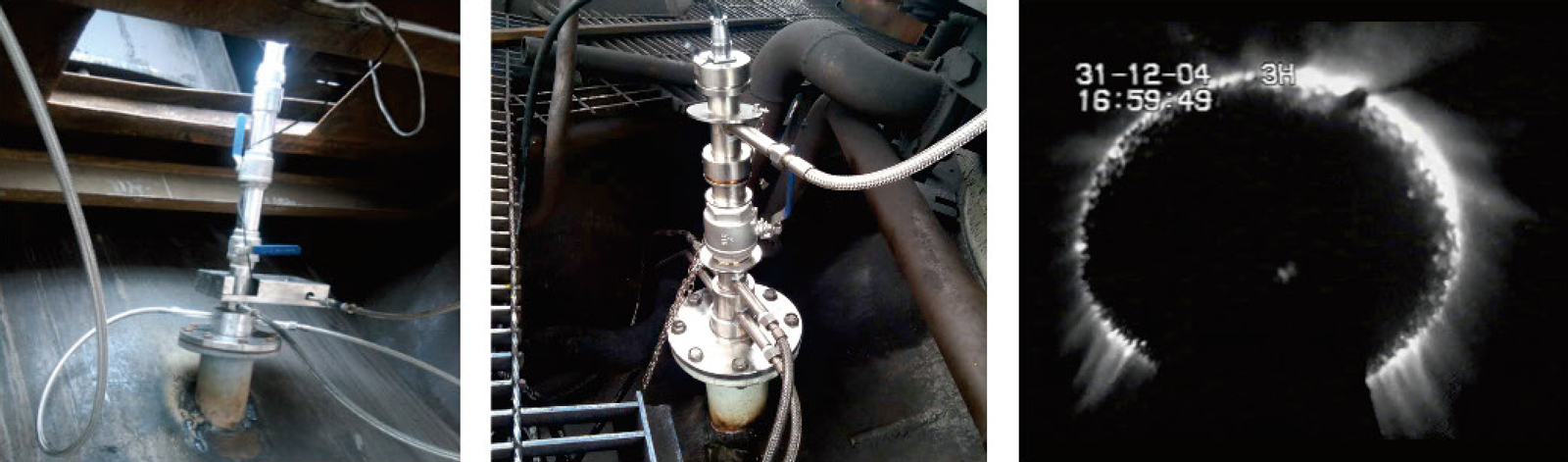

At the furnace top, this blast furnace top camera delivers continuous visual oversight of material charging operations. Operators can observe burden distribution patterns in real time, allowing precise adjustments to ensure optimal gas flow and furnace efficiency. The system’s infrared thermal imaging for blast furnace capability helps identify uneven distribution before it affects production quality.
Beyond visual observation, this blast furnace temperature distribution monitoring system delivers quantitative thermal data across the monitored area. Operators can track temperature profiles, identify hot spots, and generate real-time temperature curves—supporting precise process control, refractory condition assessment, and optimized fuel consumption.
Maintaining continuous visual oversight of the charge surface is essential for detecting irregularities such as hanging, slipping, or abnormal material movement. The LM-GL508 Blast furnace top thermal imaging system provides high-definition imagery that allows operators to respond quickly to changing conditions, preventing operational issues from escalating into costly downtime.
The versatility of this blast furnace monitoring system supplier solution extends to other high-temperature steel production areas, including tuyere level monitoring, flame detection, soaking pits, reheating furnaces, and annealing lines.
Q: What makes this blast furnace top thermal imaging system different from standard industrial cameras?
A: The LM-GL508 is purpose-built for blast furnace top monitoring with multi-stage thermal protection (water, air, nitrogen, and vortex cooling), high-temperature optics, and integrated infrared thermal imaging for blast furnace capabilities that deliver real-time temperature distribution data—not just visible video.
Q: How does blast furnace temperature distribution monitoring improve furnace operations?
A: By providing continuous thermal mapping of the charge surface, operators can visualize gas flow patterns, detect uneven burden distribution, and identify developing issues such as channeling or scaffolding before they affect furnace stability or productivity.
Q: What cooling methods are used in this air and water cooled furnace camera?
A: The LM-GL508 employs a comprehensive multi-stage cooling strategy including water cooling, compressed air cooling, nitrogen cooling, and imported American vortex cooling technology—ensuring reliable operation even with furnace temperatures up to 1800°C.
Q: Are you a blast furnace monitoring system supplier that offers customization?
A: Yes. As a specialized blast furnace monitoring system supplier, LUMING offers customization based on specific furnace configurations, mounting requirements, and integration needs. Contact us to discuss your project requirements.
User manuals, video tutorials, and on-site training (upon request)
